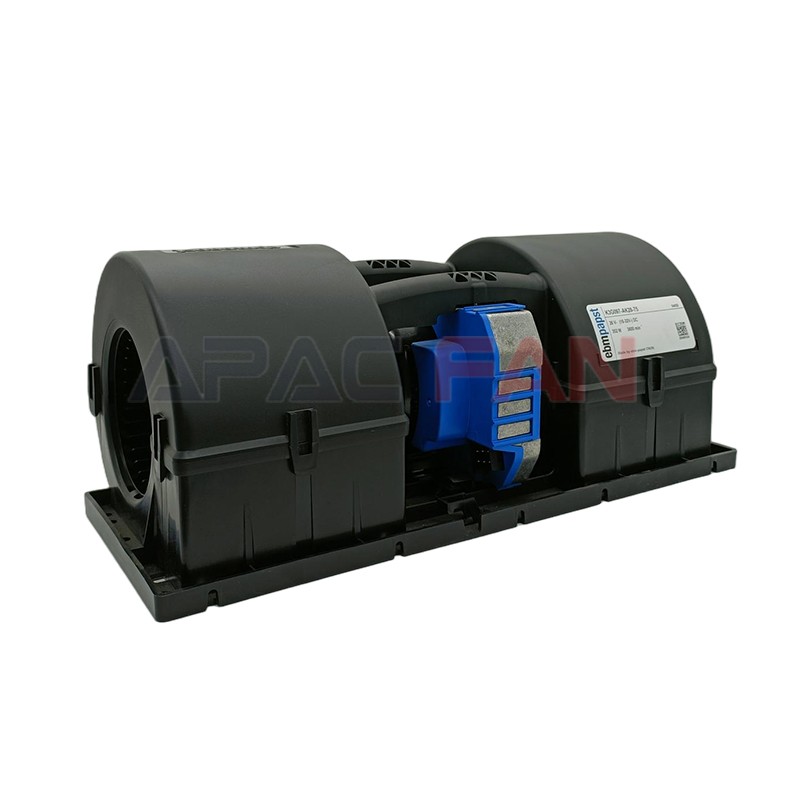

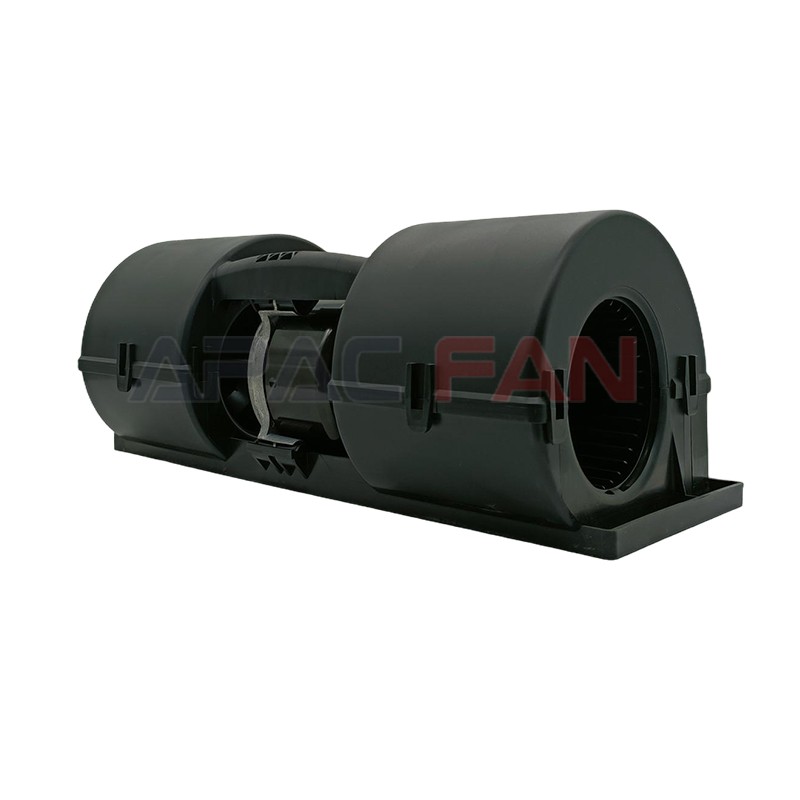

K3G097-AK28-75/G01 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

K3G097-AK28-75/G01

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：K3G097-AK28-75/G01
Fan Type：Centrifugal Fan
Rated Voltage(V)：26
Size(mm)：97
Max.Air Flow(m³/h)：1186
Max.Pressure(Pa)：595
Input Power(W)：352
Speed(RPM)：3600

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

K3G097-AK28-75/G01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

26

Size(mm)：

97

Max.Air Flow(m³/h)：

1186

Max.Pressure(Pa)：

595

Input Power(W)：

352

Speed(rpm)：

3600

Noise(db)：

Description

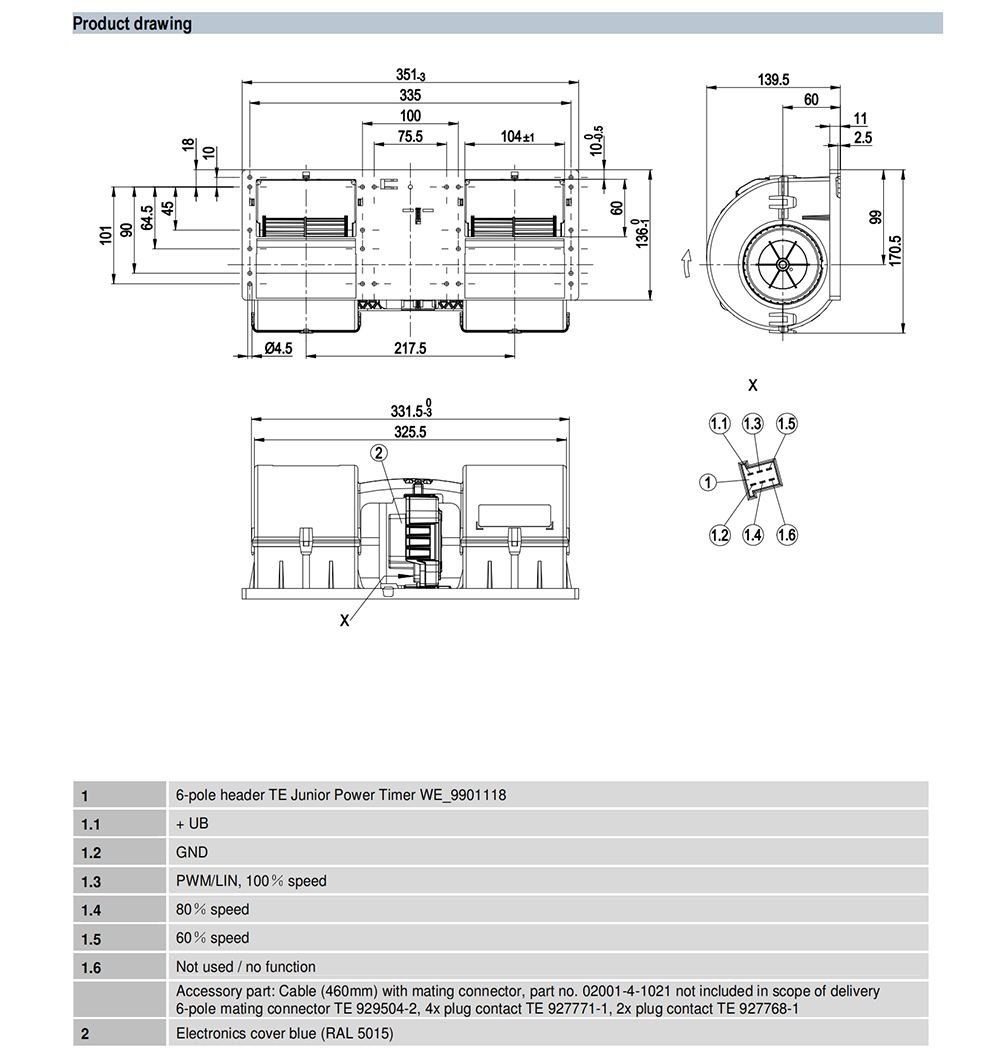

K3G097-AK28-75/G01 Ebm-papst Specification drawing：
