Product
GTW091PUU23E
Brand:
DELTA
Category:
Axial Fan
Description:
Type: EC Axial Fan
Air output (m³/h): 36186
Speed (RPM): 1100
Min Ambient Temperature: -25 °C
Plastic Impeller and Cast Iron Motor Frame
Air output (m³/h): 36186
Speed (RPM): 1100
Min Ambient Temperature: -25 °C
Plastic Impeller and Cast Iron Motor Frame
Nominal data
Brand:
DELTA
Part No.:
GTW091PUU23E
Fan Type:
Axial Fan
Rated Voltage(V):
400
Size(mm):
Max.Air Flow(m³/h):
36186
Max.Pressure(Pa):
219
Input Power(W):
3100
Speed(rpm):
1100
Noise(db):
86
Description

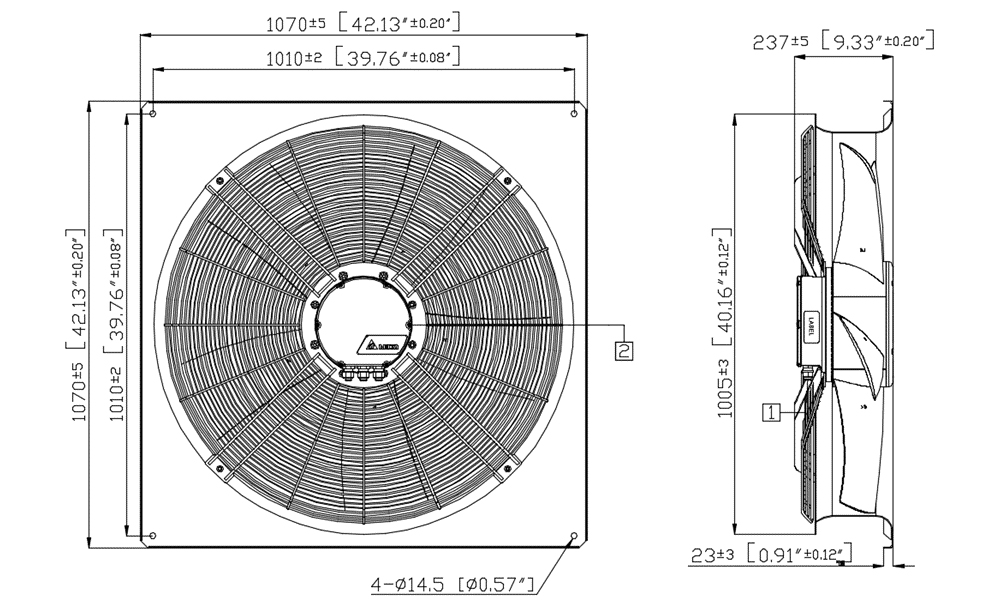

GTW091PUU23E Delta Specification drawing:

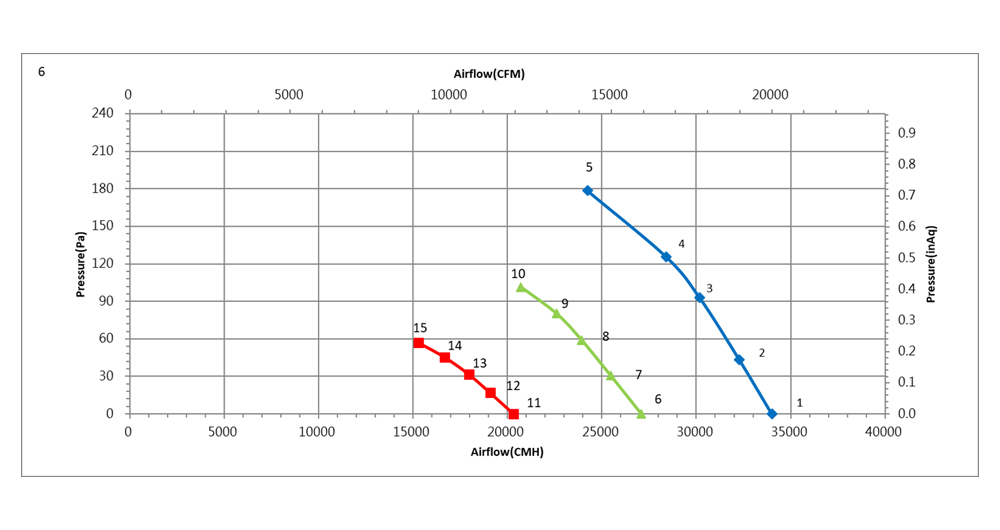

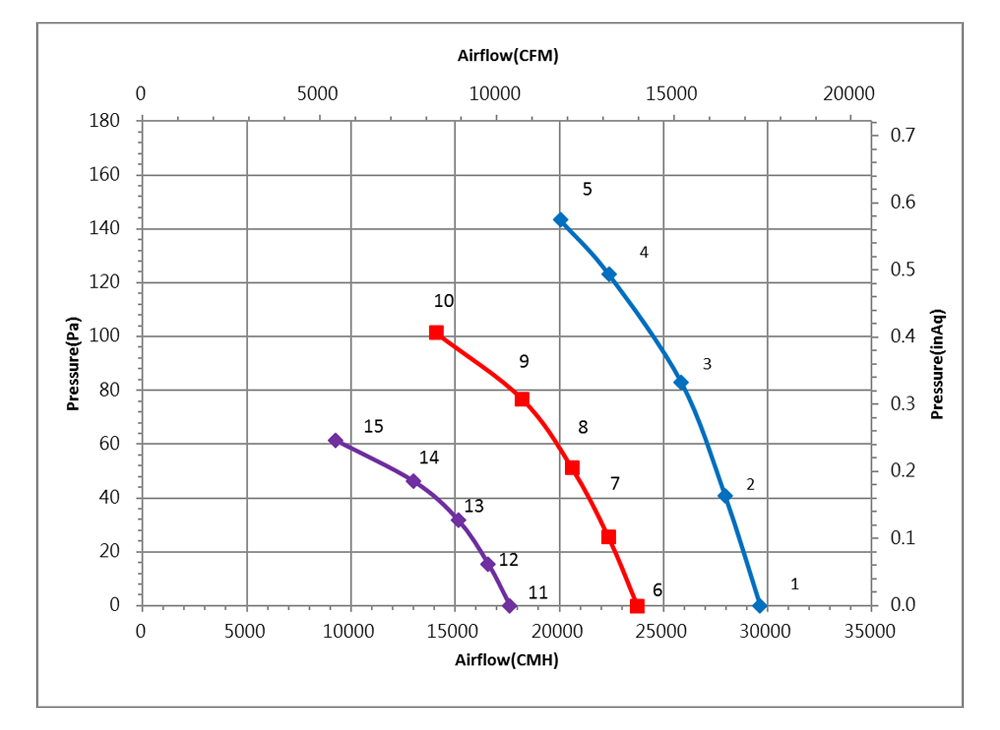

P & Q curves(without fanguard condition)

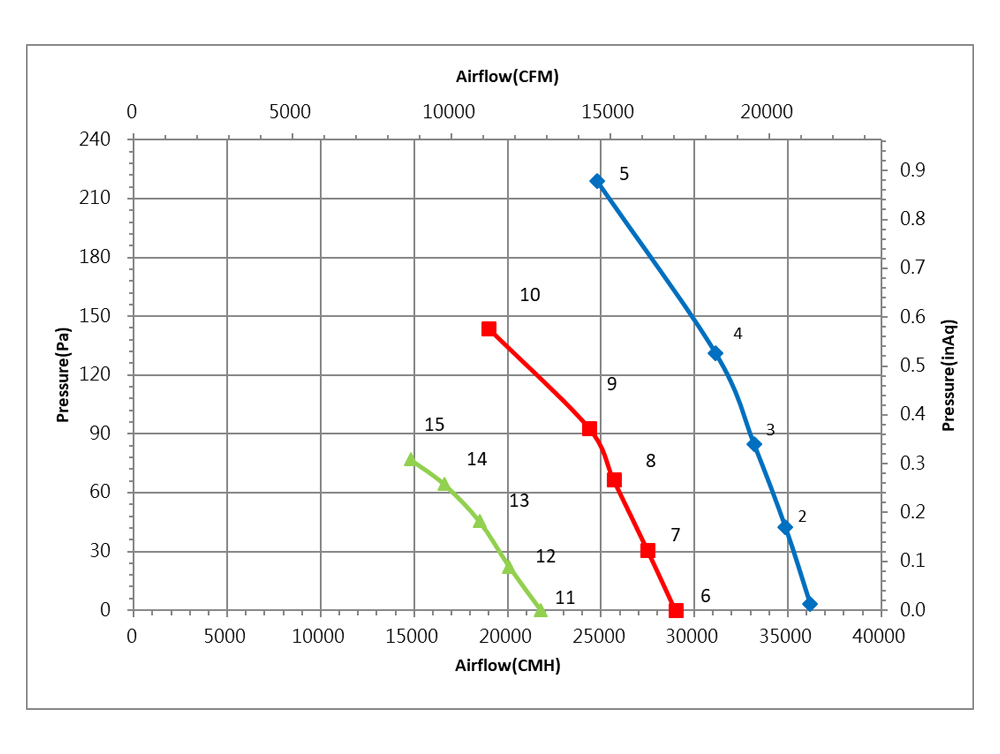

P & Q curves(with fanguard condition)
