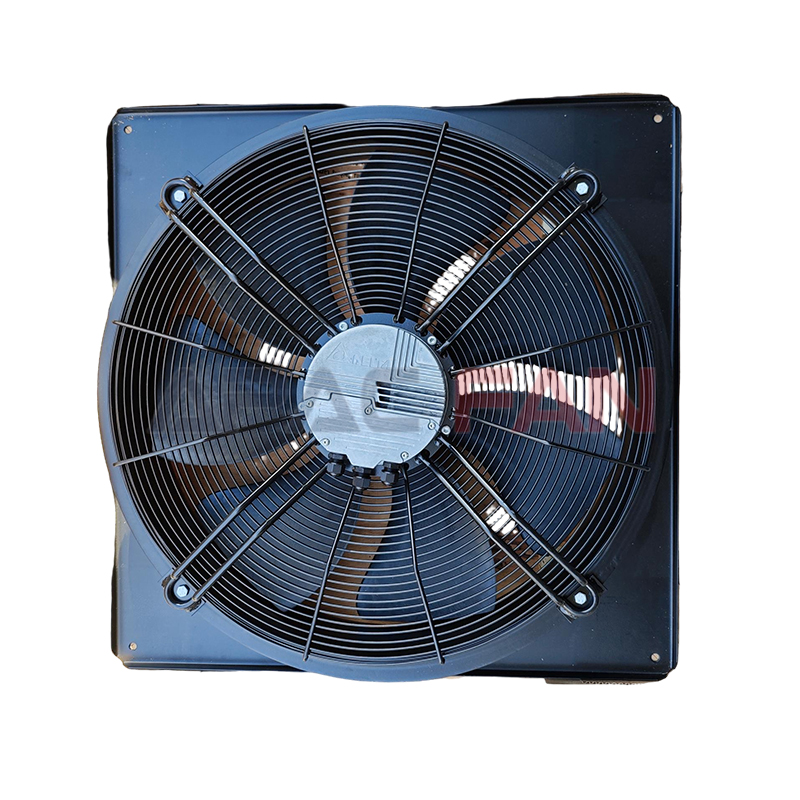

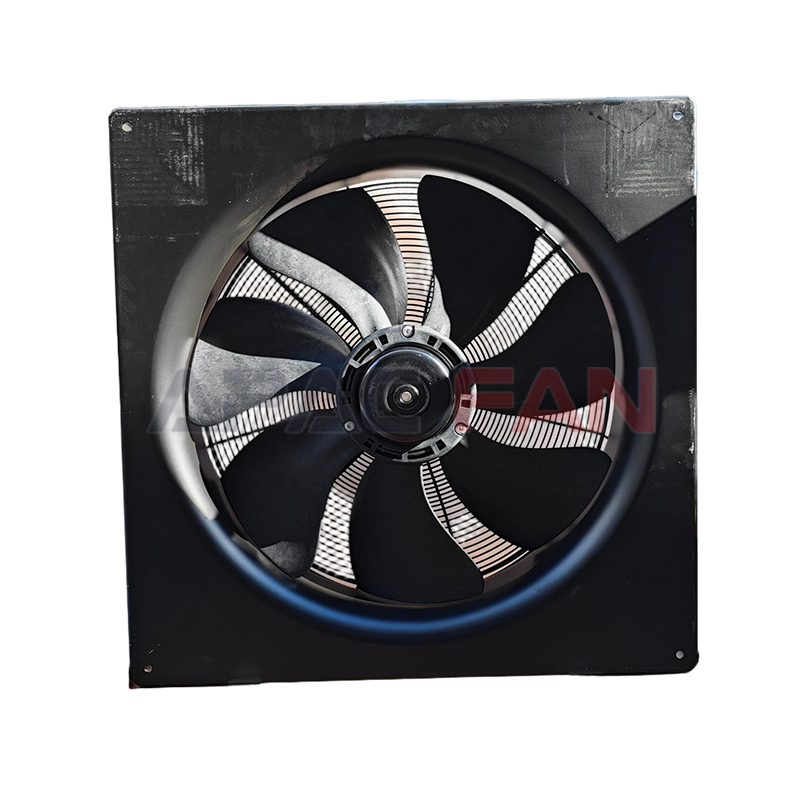

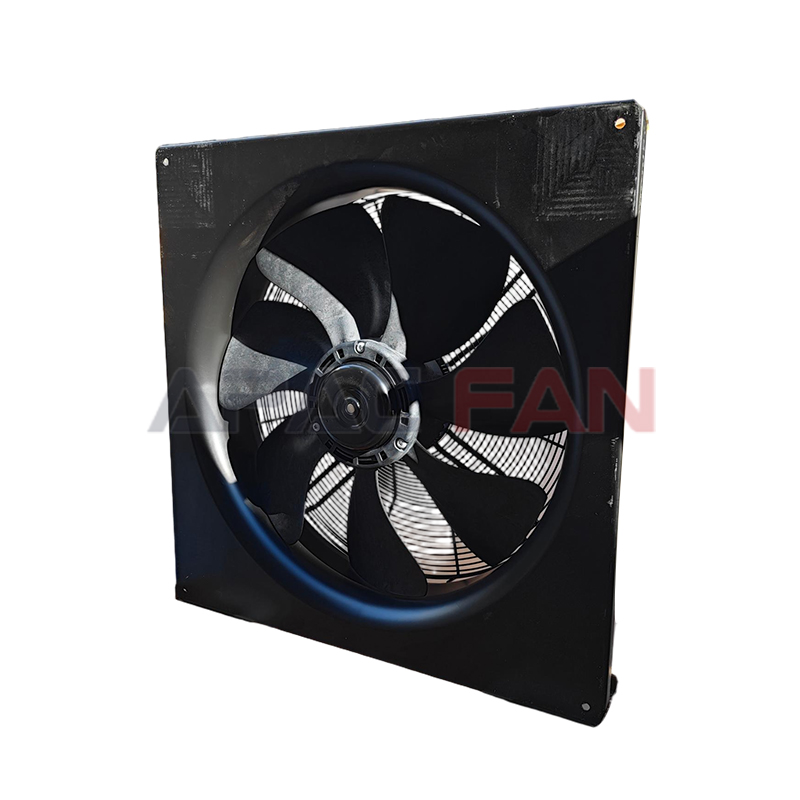

GTW063HUD22E-M001
Brand：
DELTA
Category：
Axial Fan
Description：
Operating temperature range -25 ~ +60 ℃
Storage temperature range -40 ~ +70 ℃
Control input 0-10VDC / PWM / 4-20mA.
Output +10VDC (±10%), max. 10mA.
Control voltage output: 0-10VDC.
RS485 control bus ( MODBUS (V1.1) RTU/ 8N1)
Safety UL ,CUL(in process)
IP Level IP54
EMC EN61000-6-1/3 (in progress)
Protection class Ⅰ
Insulation class F
Leakage current <= 3.5 mA
Motor protection Over temperature protected
Life expectance 60,000 hrs at 40 ℃ / 15 ~ 65 %RH
Storage temperature range -40 ~ +70 ℃
Control input 0-10VDC / PWM / 4-20mA.
Output +10VDC (±10%), max. 10mA.
Control voltage output: 0-10VDC.
RS485 control bus ( MODBUS (V1.1) RTU/ 8N1)
Safety UL ,CUL(in process)
IP Level IP54
EMC EN61000-6-1/3 (in progress)
Protection class Ⅰ
Insulation class F
Leakage current <= 3.5 mA
Motor protection Over temperature protected
Life expectance 60,000 hrs at 40 ℃ / 15 ~ 65 %RH
Nominal data
Brand：
DELTA
Part No.：
GTW063HUD22E-M001
Fan Type：
Axial Fan
Rated Voltage(V)：
3~230/400
Size(mm)：
630
Max.Air Flow(m³/h)：
13218
Max.Pressure(Pa)：
Input Power(W)：
1100
Speed(rpm)：
1200
Noise(db)：
76
Description

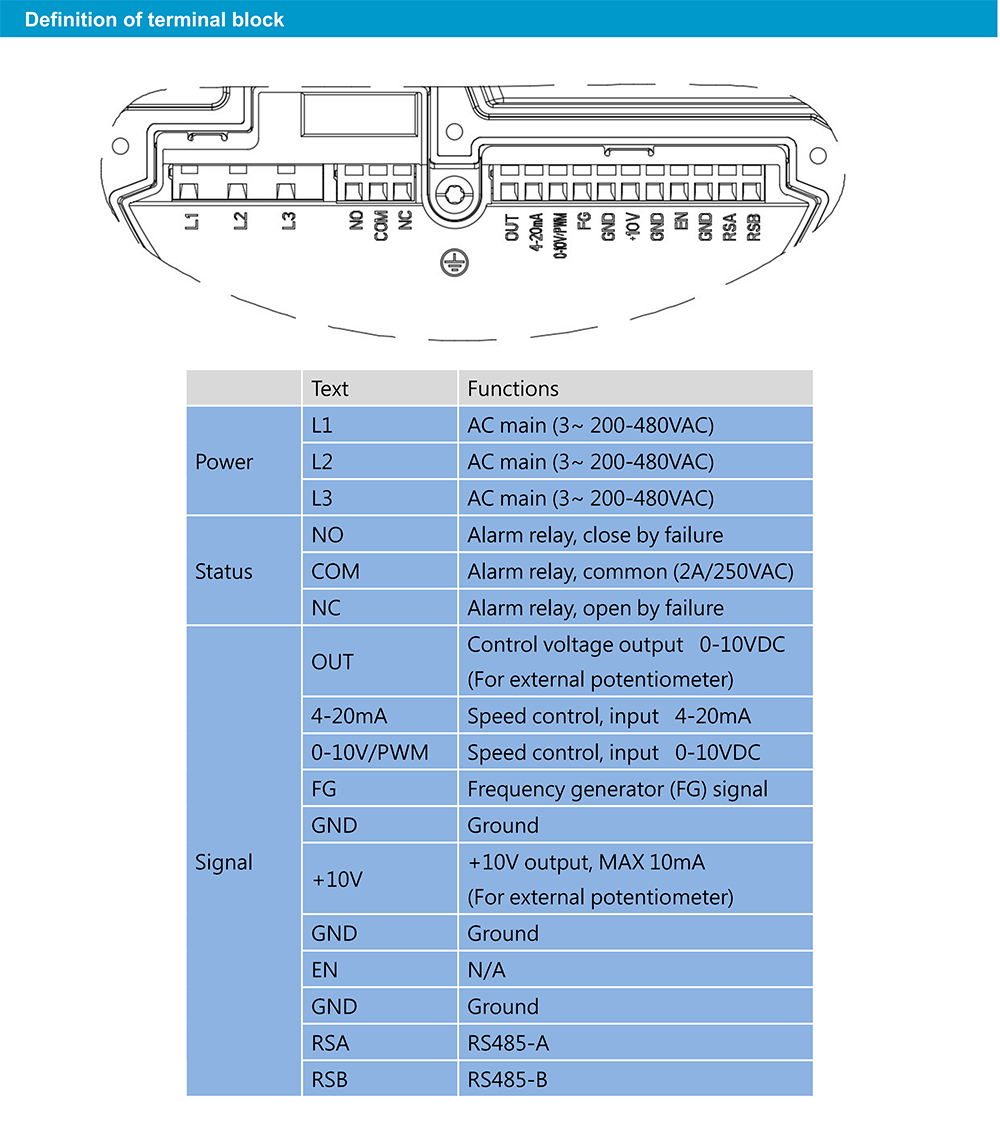

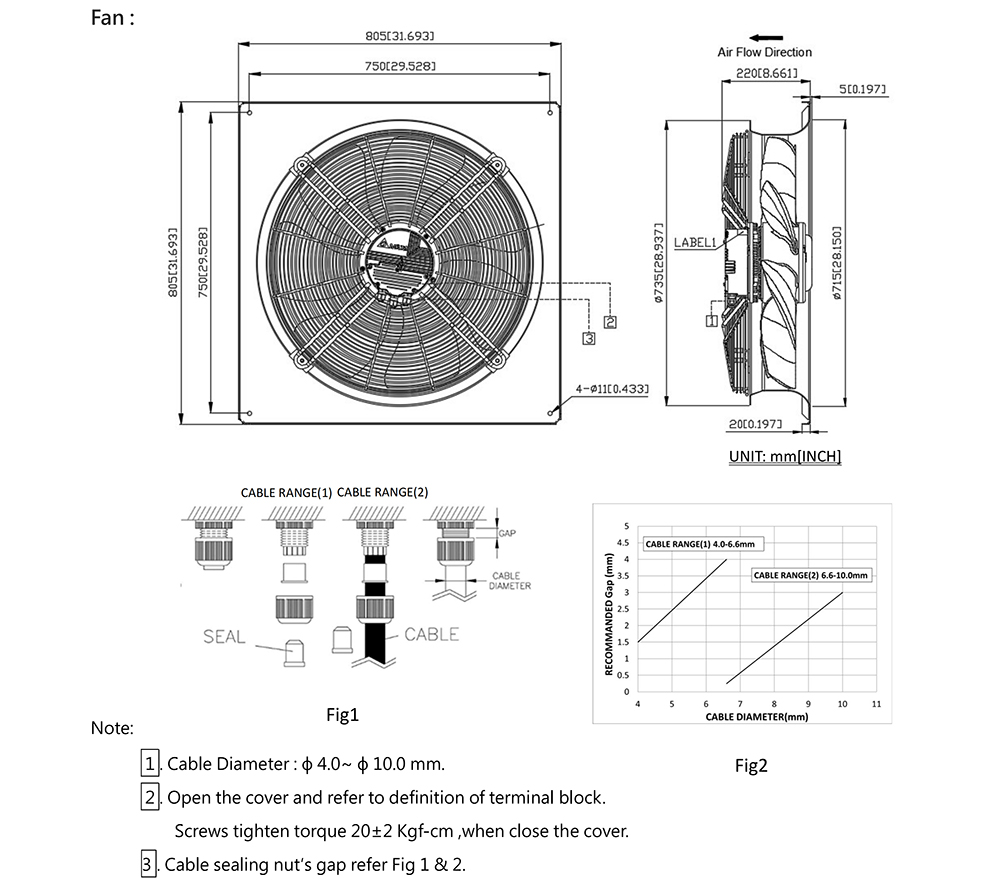

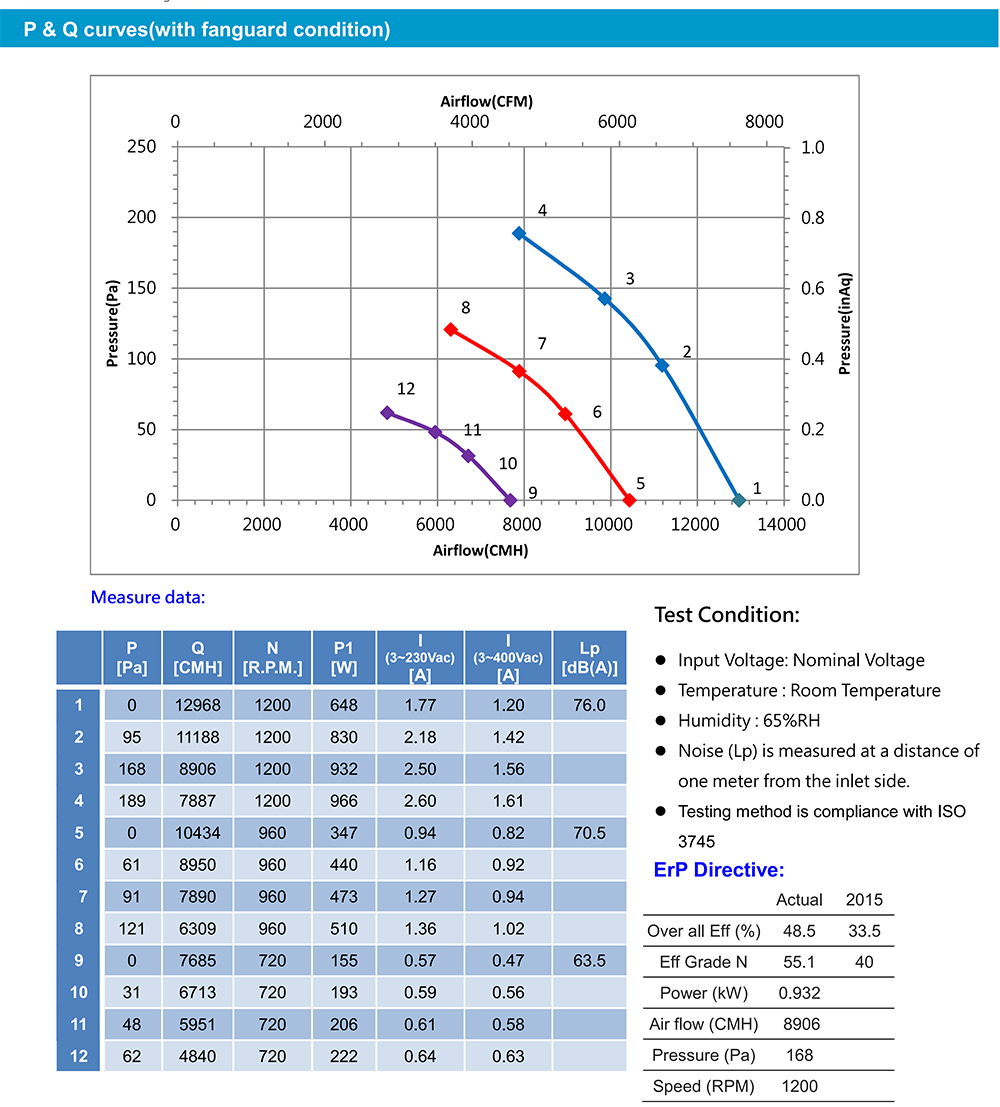

GTW063HUD22E-M001 Delta Specification Drawing：
