GTW050EUD19E-M001
Brand：
DELTA
Category：
Axial Fan
Description：

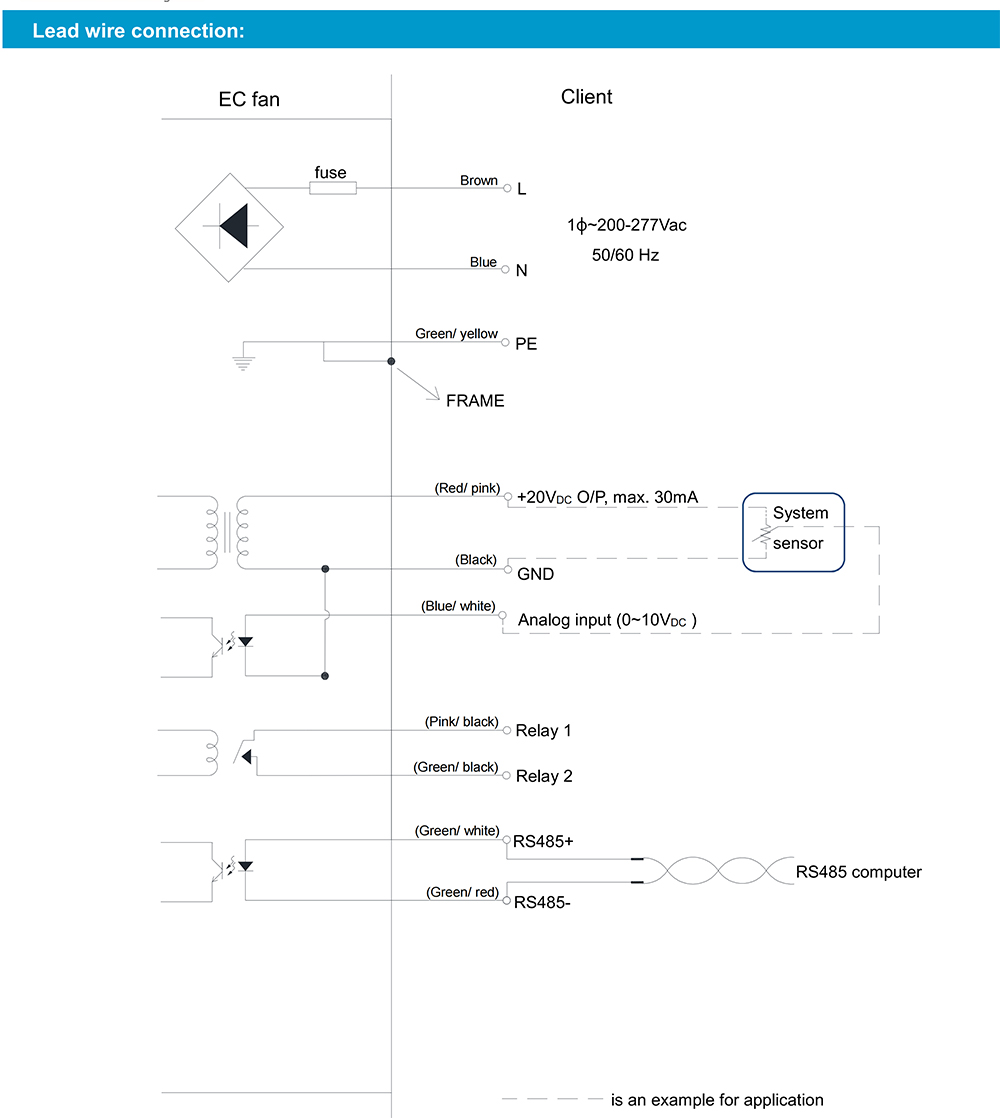

0~10VDC analog input.
Output +20VDC (±10%), max. 30mA.
RS485 control bus (MODBUS RTU, Baudrate:19200, 8E1,A6)
Alarm relay, Locked rotor protection, Soft start.
Safety CE(in process)
IP Level IP54
EMC EN61000-6-1 , EN61000-6-3 , EN61000-3-2/3
Output +20VDC (±10%), max. 30mA.
RS485 control bus (MODBUS RTU, Baudrate:19200, 8E1,A6)
Alarm relay, Locked rotor protection, Soft start.
Safety CE(in process)
IP Level IP54
EMC EN61000-6-1 , EN61000-6-3 , EN61000-3-2/3

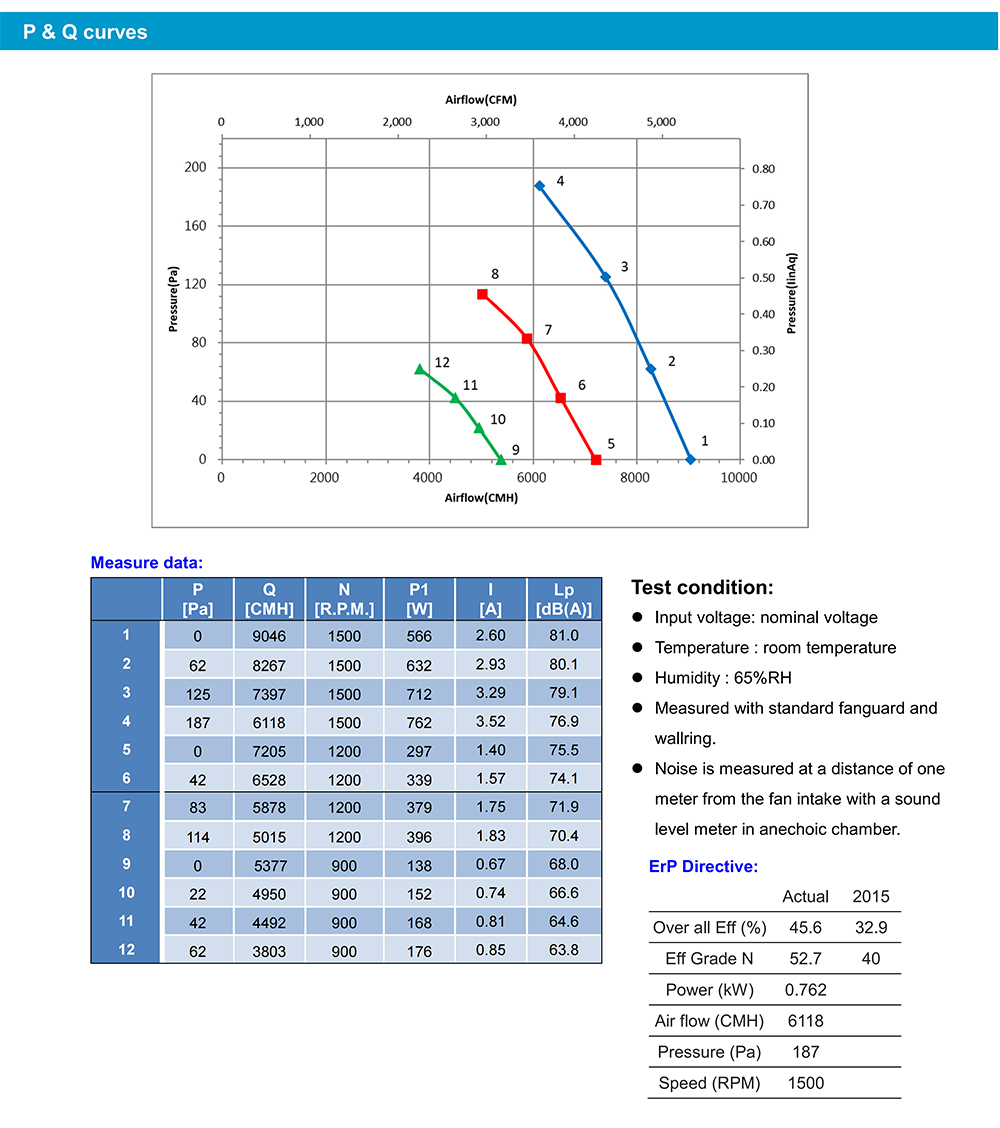

Nominal data
Brand：
DELTA
Part No.：
GTW050EUD19E-M001
Fan Type：
Axial Fan
Rated Voltage(V)：
1~ 200-277
Size(mm)：
500
Max.Air Flow(m³/h)：
9046
Max.Pressure(Pa)：
187
Input Power(W)：
800
Speed(rpm)：
1500
Noise(db)：
81
Description

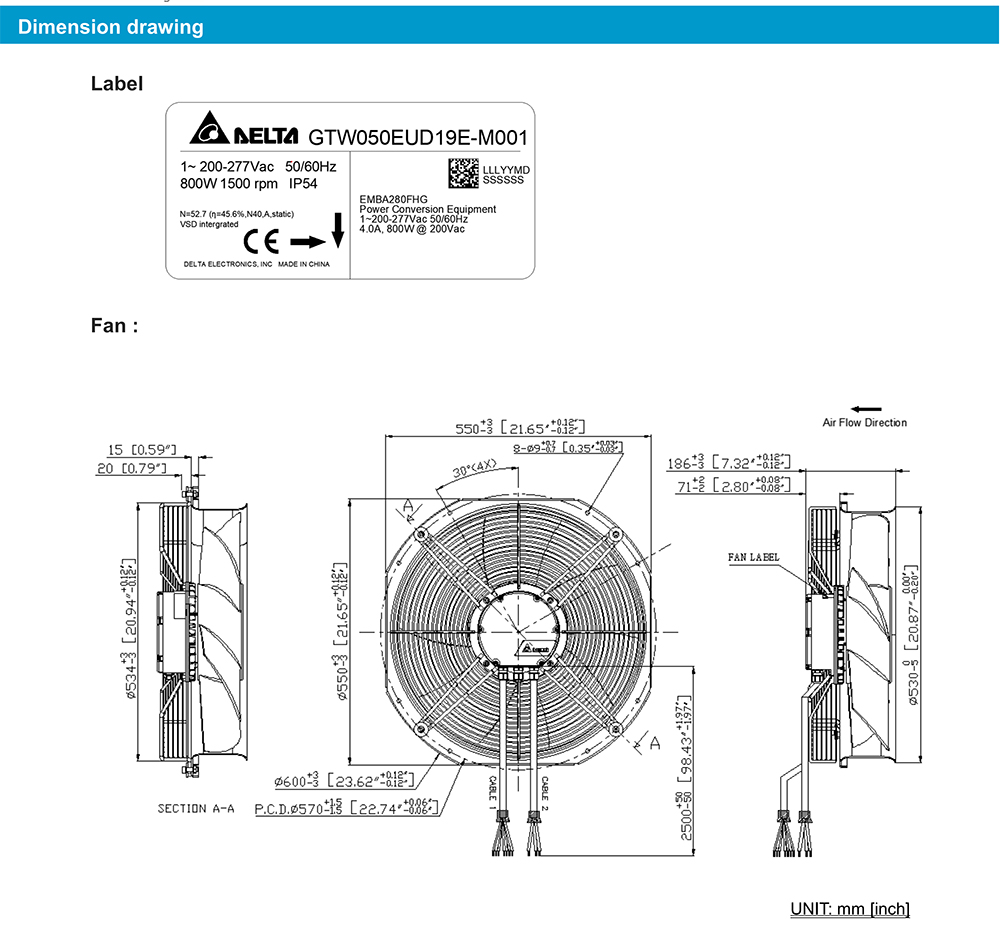

GTW050EUD19E-M001 Delta Specification Drawing：
