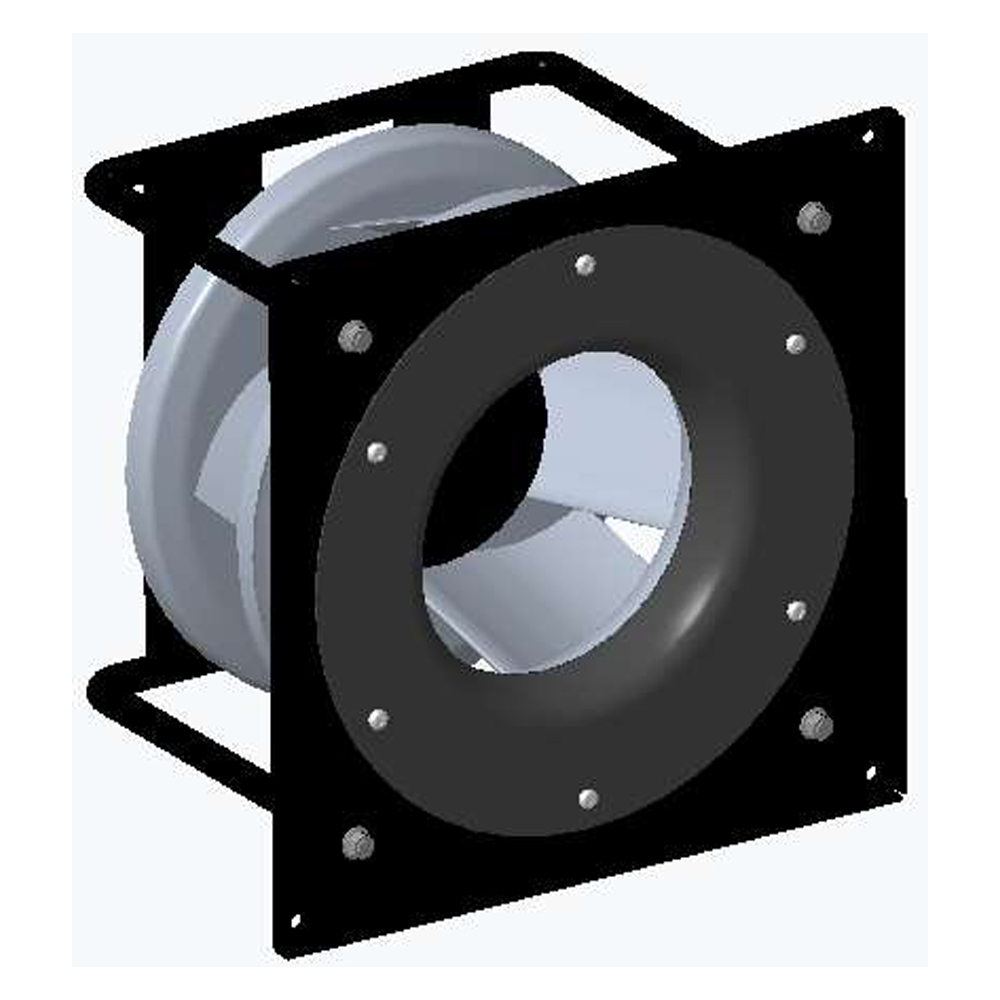

GTM045PUV36R-M002
Brand：
DELTA
Category：
Centrifugal Fan
Description：
Type: EC Centrifugal Fan
Air output (m³/h): 11762
Speed (RPM): 3500
Min Ambient Temperature: -25 °C
Aluminum Impeller and Die-cast Motor Frame
Air output (m³/h): 11762
Speed (RPM): 3500
Min Ambient Temperature: -25 °C
Aluminum Impeller and Die-cast Motor Frame
Nominal data
Brand：
DELTA
Part No.：
GTM045PUV36R-M002
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
400
Size(mm)：
Max.Air Flow(m³/h)：
11762
Max.Pressure(Pa)：
2941
Input Power(W)：
6000
Speed(rpm)：
3500
Noise(db)：
95
Description

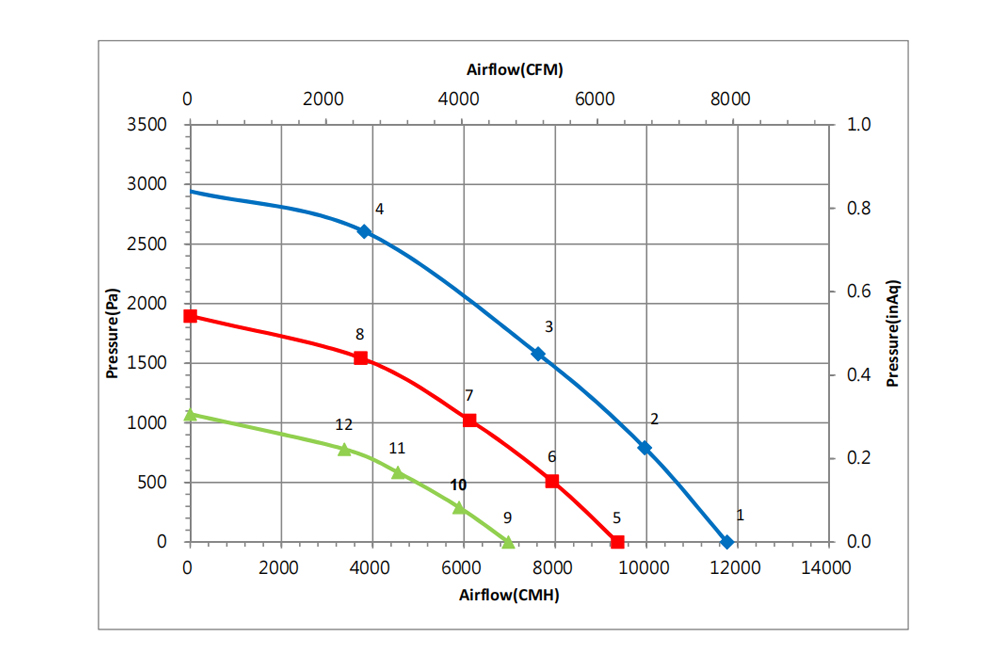

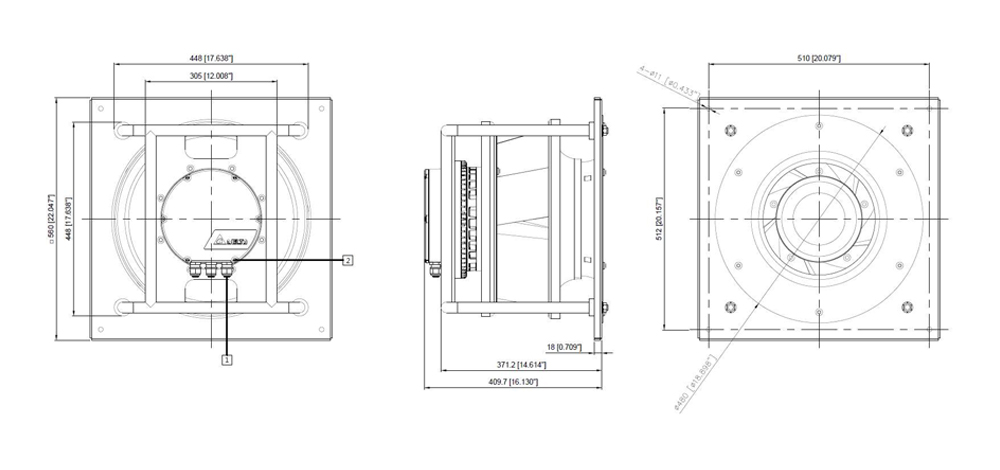

GTM045PUV36R-M002 Delta Specification drawing：
