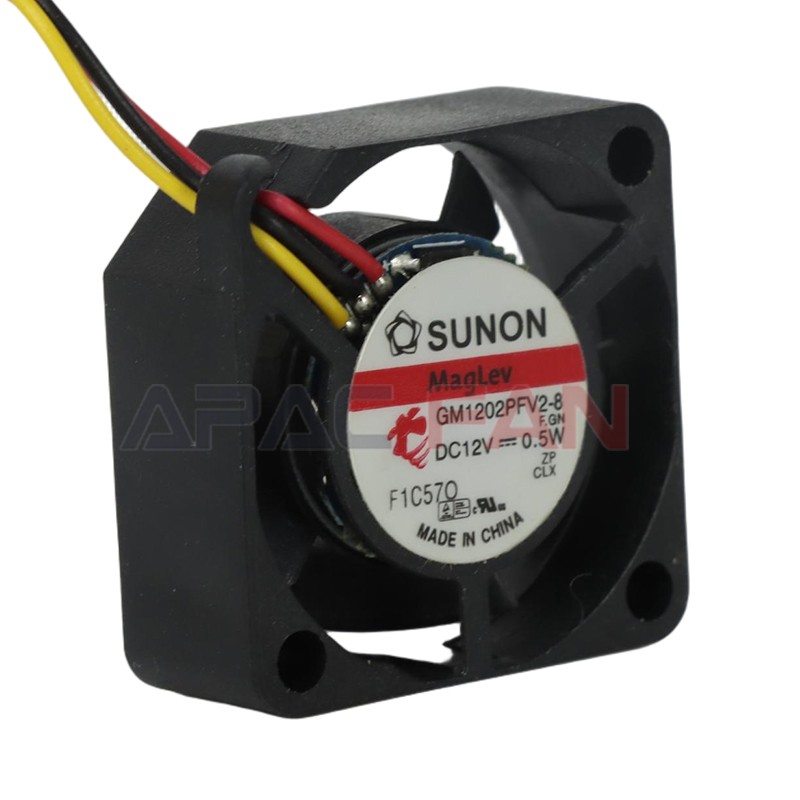

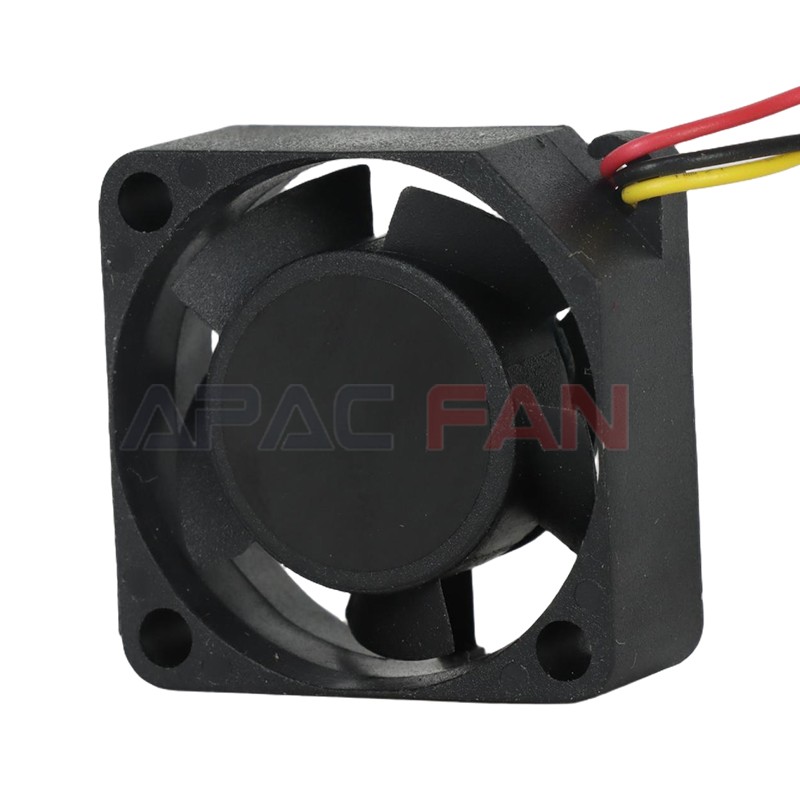

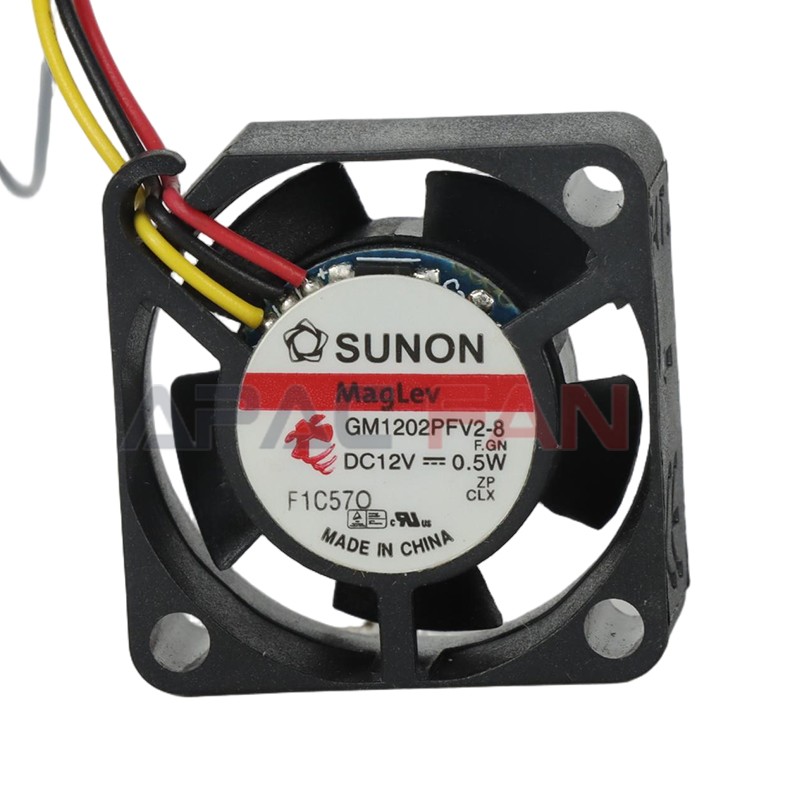

GM1202PFV2-8 F.GN

Brand：

SUNON

Category：

Compact Fan

Description：

100% Genuine SUNON GM1202PFV2-8 F.GN micro axial fan, 12V, 25×25×10mm, 10000RPM and ultra-low 16dB noise. Ideal for compact electronics, available for fast delivery.

00852-56261528 info@apacfan.com

Nominal data

Brand：

SUNON

Part No.：

GM1202PFV2-8 F.GN

Fan Type：

Compact Fan

Rated Voltage(V)：

Size(mm)：

25*25*10

Max.Air Flow(m³/h)：

Max.Pressure(Pa)：

Input Power(W)：

Speed(rpm)：

10000

Noise(db)：

Description

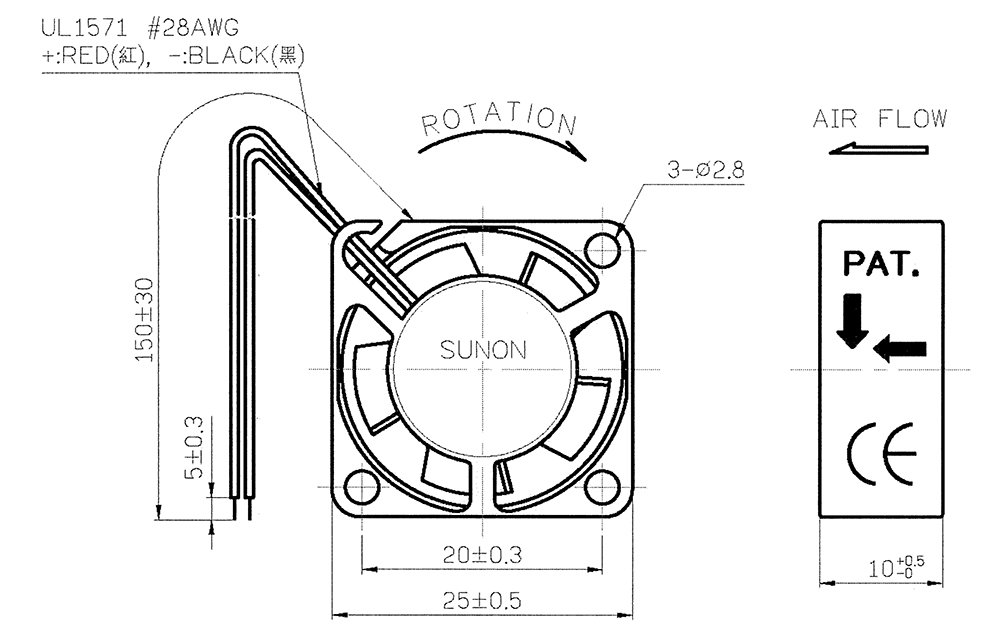

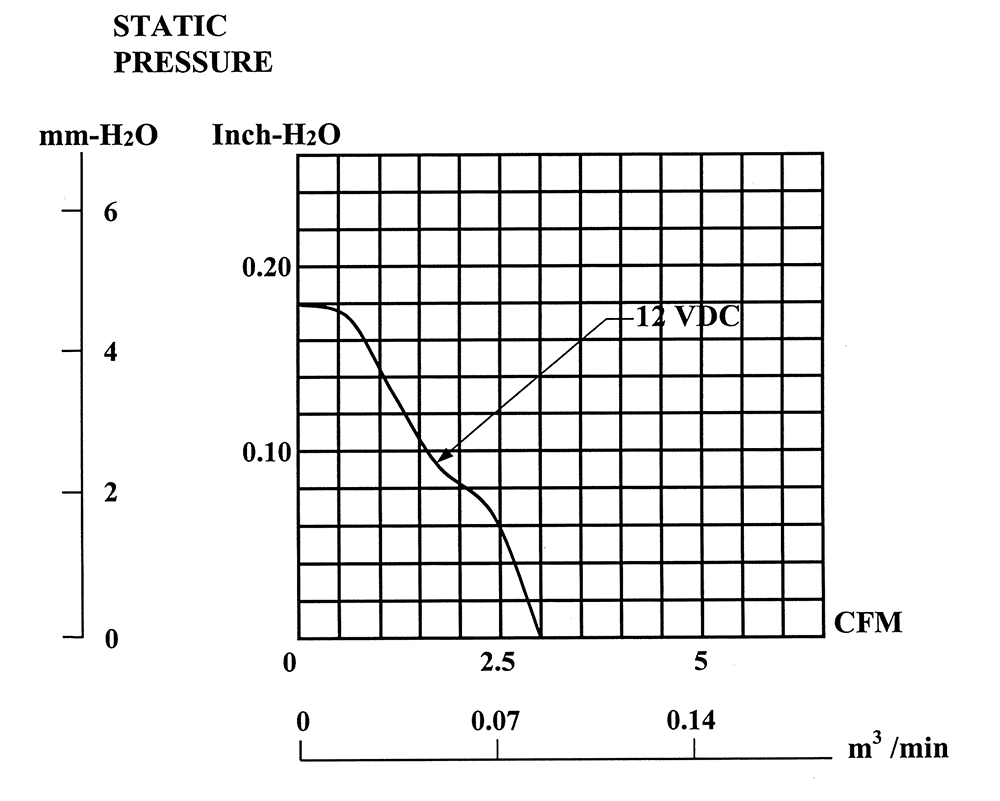

GM1202PFV2-8 F.GN SUNON Specification Drawing：
