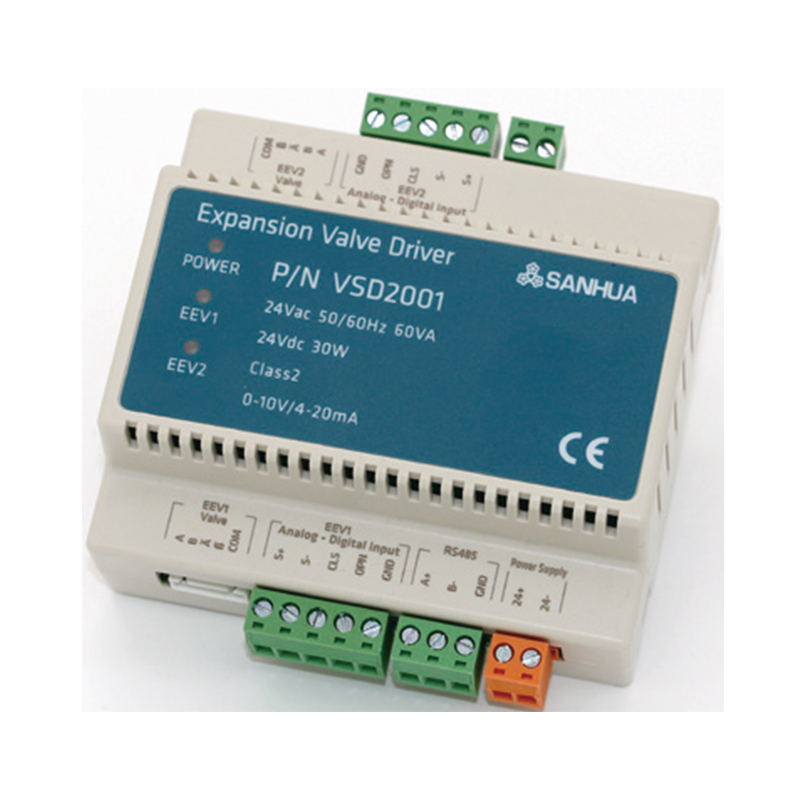

VSD2001 Series Electronic Expansion Valve Driver
Brand：
Sanhua
Category：
Electronic Expansion Valve Driver
Description：
FEATURES
• DOUBLE CIRCUIT INDEPENDENT CONTROL;
• SINGLE AND BIPOLAR CONTROL CAN BE FREELY SELECTED;
• SUITABLE FOR ALL DPF/LPF/VPF SERIES EEV;
• 0~10VDC OR 4~20MA ANALOG SIGNAL INPUT, CONTROL EEV OPENING;
• SMALL SIZE, SLIDE DESIGN, EASY TO INSTALL;
GENERAL SPECIFICATIONS
• Storage temperature: -30°C~+55°C
• Relative humidity: ≤95%RH

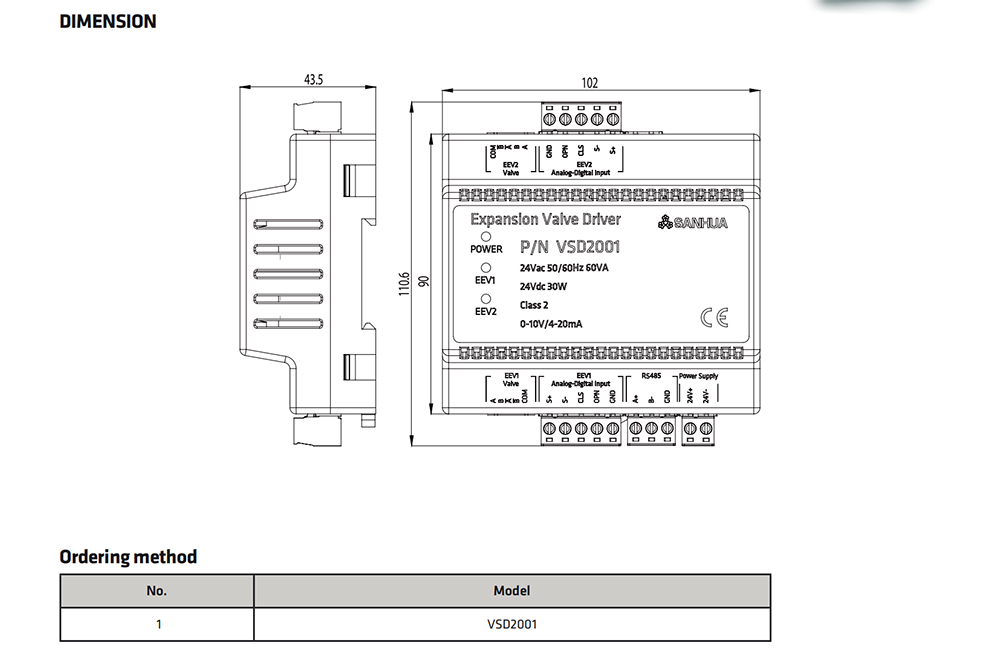

• Dimension: 102(W)mm×111(H)mm×44(D)mm (With terminal)• Certifcations: CE
ELECTRICAL PARAMETERS
Power supply: 24Vac (20~28), 50/60HZ, 60VA
24Vdc (20~28), 30W, class 2
Inputs: 4~20mA or 0~100VDC analog signal
Outputs: Single and bipolar EEV motor output
Drive speed: 200pps (30~200pps are available)
• DOUBLE CIRCUIT INDEPENDENT CONTROL;
• SINGLE AND BIPOLAR CONTROL CAN BE FREELY SELECTED;
• SUITABLE FOR ALL DPF/LPF/VPF SERIES EEV;
• 0~10VDC OR 4~20MA ANALOG SIGNAL INPUT, CONTROL EEV OPENING;
• SMALL SIZE, SLIDE DESIGN, EASY TO INSTALL;
GENERAL SPECIFICATIONS
• Storage temperature: -30°C~+55°C
• Relative humidity: ≤95%RH
• Dimension: 102(W)mm×111(H)mm×44(D)mm (With terminal)• Certifcations: CE
ELECTRICAL PARAMETERS
Power supply: 24Vac (20~28), 50/60HZ, 60VA
24Vdc (20~28), 30W, class 2
Inputs: 4~20mA or 0~100VDC analog signal
Outputs: Single and bipolar EEV motor output
Drive speed: 200pps (30~200pps are available)
