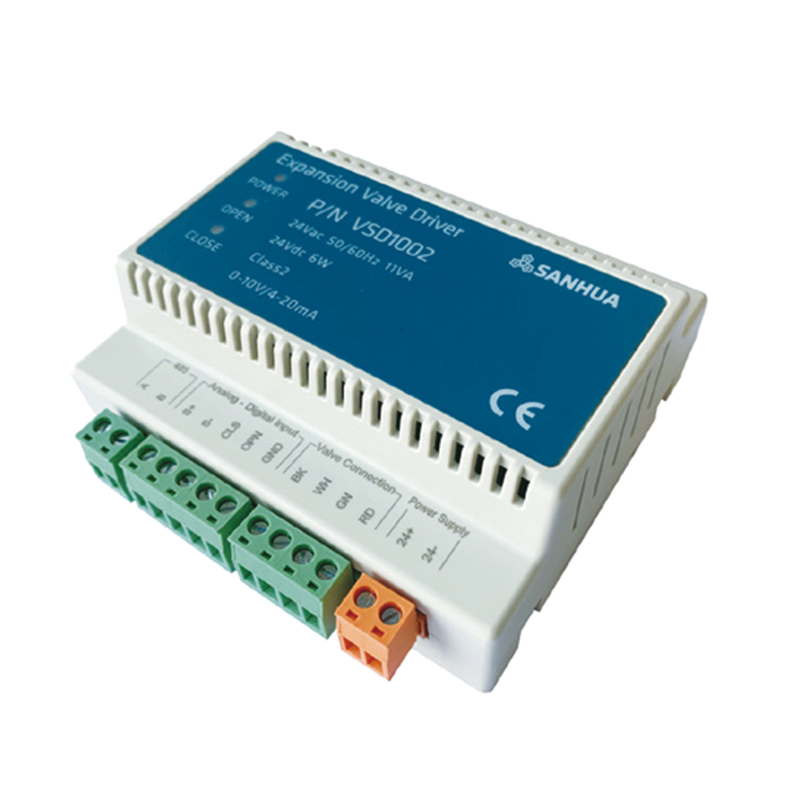

VSD1002 Series Electronic Expansion Valve Driver
Brand：
Sanhua
Category：
Electronic Expansion Valve Driver
Description：
FEATURES
• CONSTANT CURRENT CONTROL STEPPER MOTOR, PRECISE DRIVE CURRENT;
• 0~10VDC OR 4~20mA ANALOG SIGNAL INPUT, CONTROL EEV OPENING;
• FORCED OPEN/CLOSE VALVE CONTROL TO FACILITATE DEBUGGING;
• SUPPORT MODBUS COMMUNICATION, UP TO 32 CASCADES;
• SMALL SIZE, SLIDE DESIGN, EASY TO INSTALL;
GENERAL SPECIFICATIONS
• Suitable for all VPF series EEV
• Operating temperature: -30°C~+55°C
• Storage temperature: -30°C~+55°C
• Relative humidity: ≤95%RH

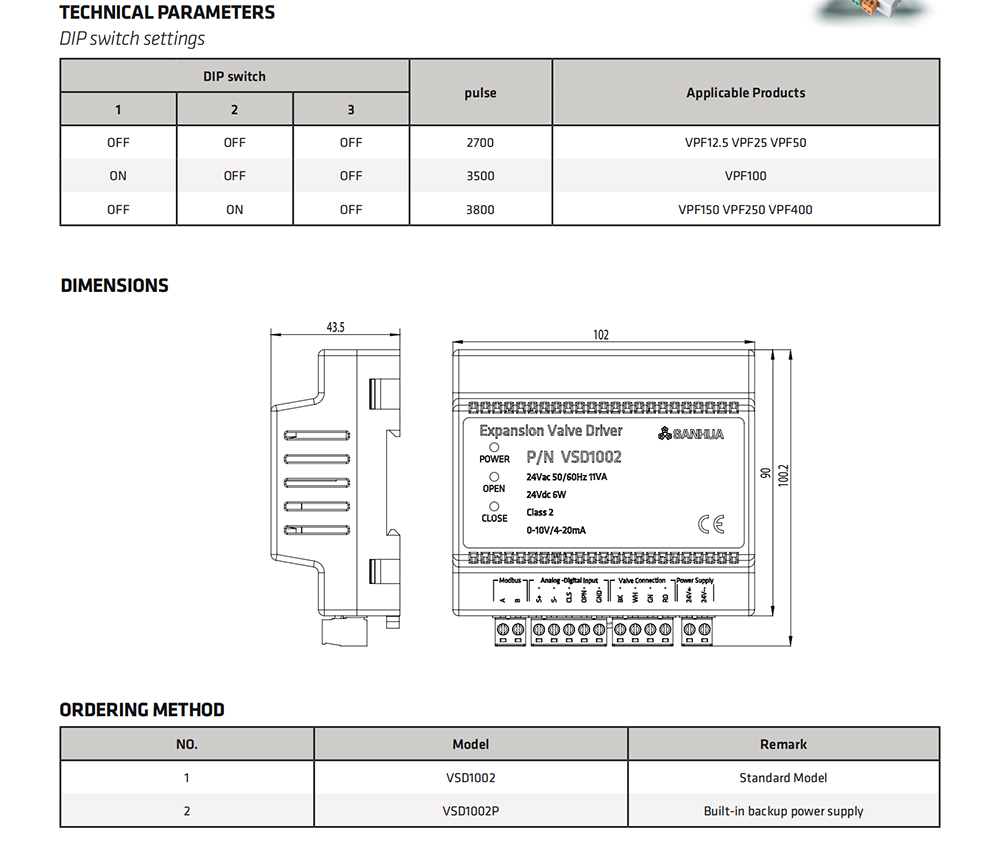

• Dimension: 102(W)mm×90(H)mm×40(D)mm
• Installation method: DIN35 slide or M3 screw
• Certifcations: UL,CE
ELECTRICAL PARAMETERS
Power supply: 24Vac (20~28), 50/60Hz
24Vdc (20~28), class 2
Power consumption: 6W at 24Vdc or 11VA at 24 Vdc
Terminals: Spacing 5.08mm Pluggable
Inputs: 4~20mA or 0~10VDC analog signal
Digital signal input Output: 4 wire EEV output
Communication: RS485
• CONSTANT CURRENT CONTROL STEPPER MOTOR, PRECISE DRIVE CURRENT;
• 0~10VDC OR 4~20mA ANALOG SIGNAL INPUT, CONTROL EEV OPENING;
• FORCED OPEN/CLOSE VALVE CONTROL TO FACILITATE DEBUGGING;
• SUPPORT MODBUS COMMUNICATION, UP TO 32 CASCADES;
• SMALL SIZE, SLIDE DESIGN, EASY TO INSTALL;
GENERAL SPECIFICATIONS
• Suitable for all VPF series EEV
• Operating temperature: -30°C~+55°C
• Storage temperature: -30°C~+55°C
• Relative humidity: ≤95%RH
• Dimension: 102(W)mm×90(H)mm×40(D)mm
• Installation method: DIN35 slide or M3 screw
• Certifcations: UL,CE
ELECTRICAL PARAMETERS
Power supply: 24Vac (20~28), 50/60Hz
24Vdc (20~28), class 2
Power consumption: 6W at 24Vdc or 11VA at 24 Vdc
Terminals: Spacing 5.08mm Pluggable
Inputs: 4~20mA or 0~10VDC analog signal
Digital signal input Output: 4 wire EEV output
Communication: RS485
