GTM031PCM22R-M001A

Brand：

DELTA

Category：

Centrifugal Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

DELTA

Part No.：

GTM031PCM22R-M001A

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

3~380-480

Size(mm)：

310

Max.Air Flow(m³/h)：

Max.Pressure(Pa)：

Input Power(W)：

1250

Speed(rpm)：

3310

Noise(db)：

Description

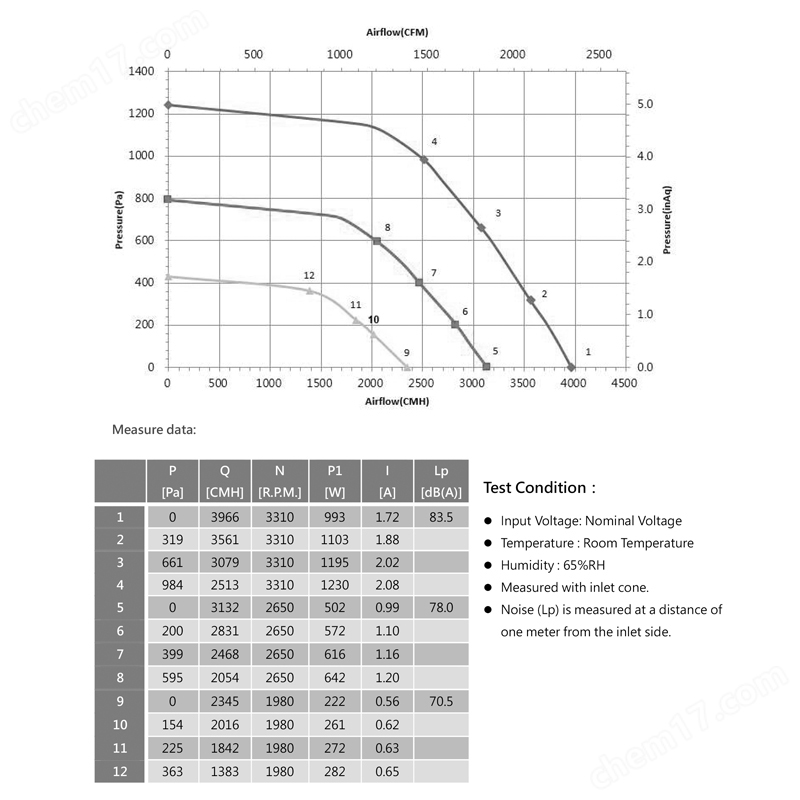

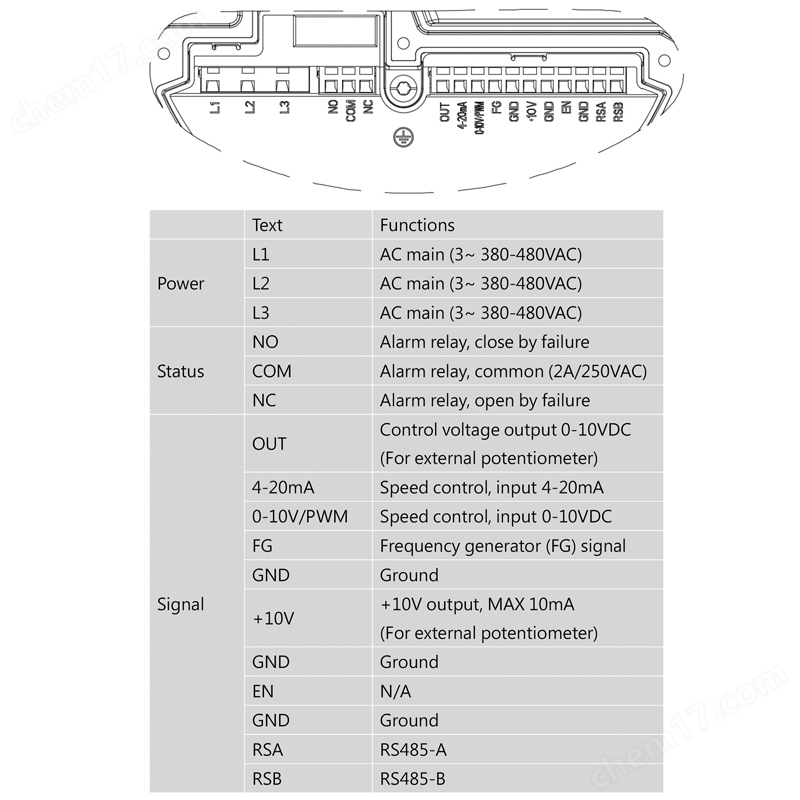

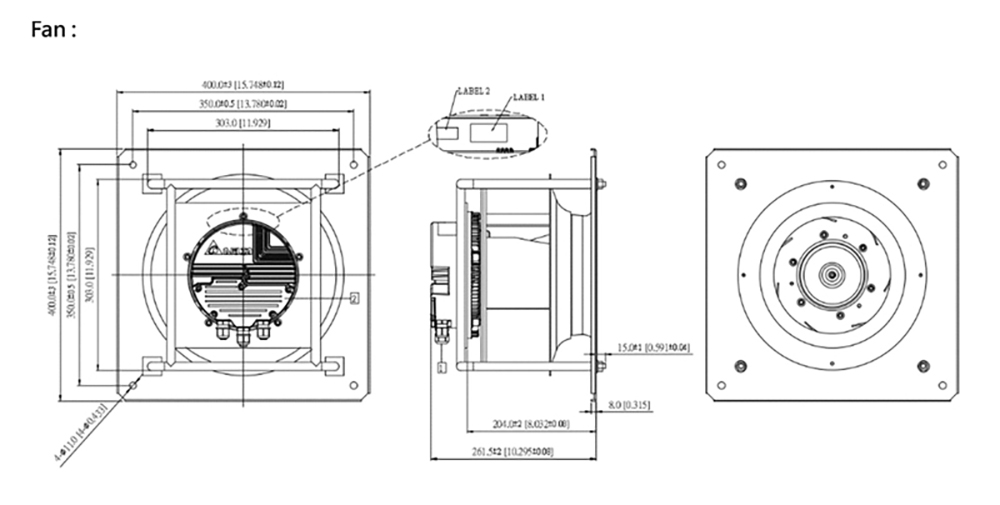

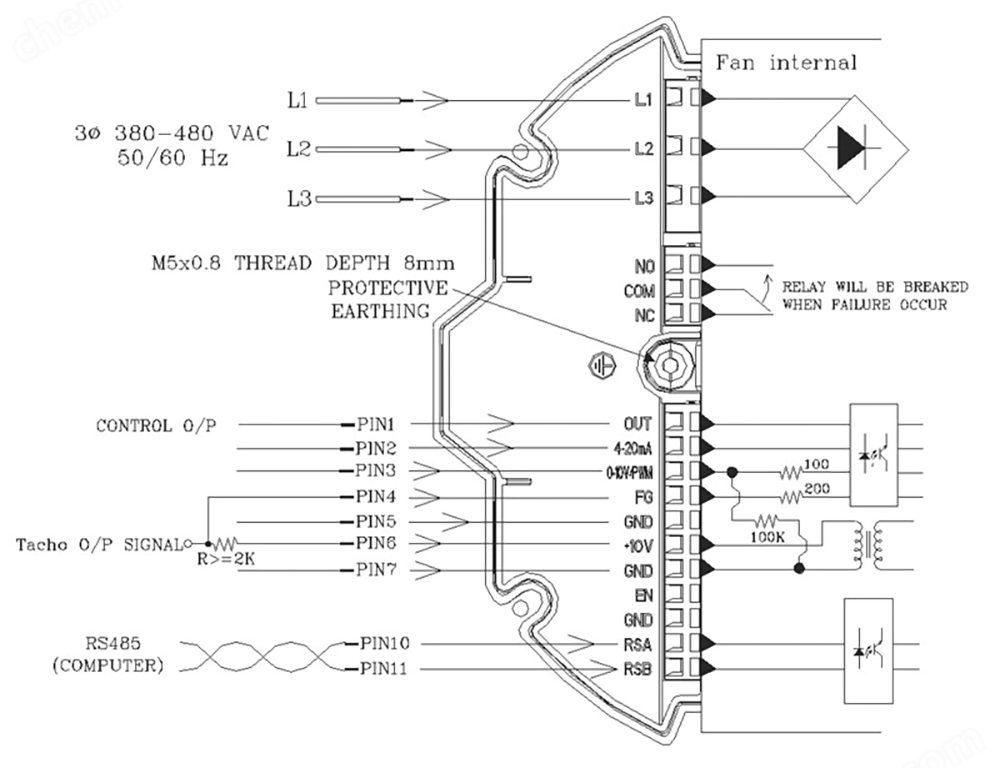

GTM031PCM22R-M001A Delta Specification Drawing：

GTM031PCM22R-M001A
