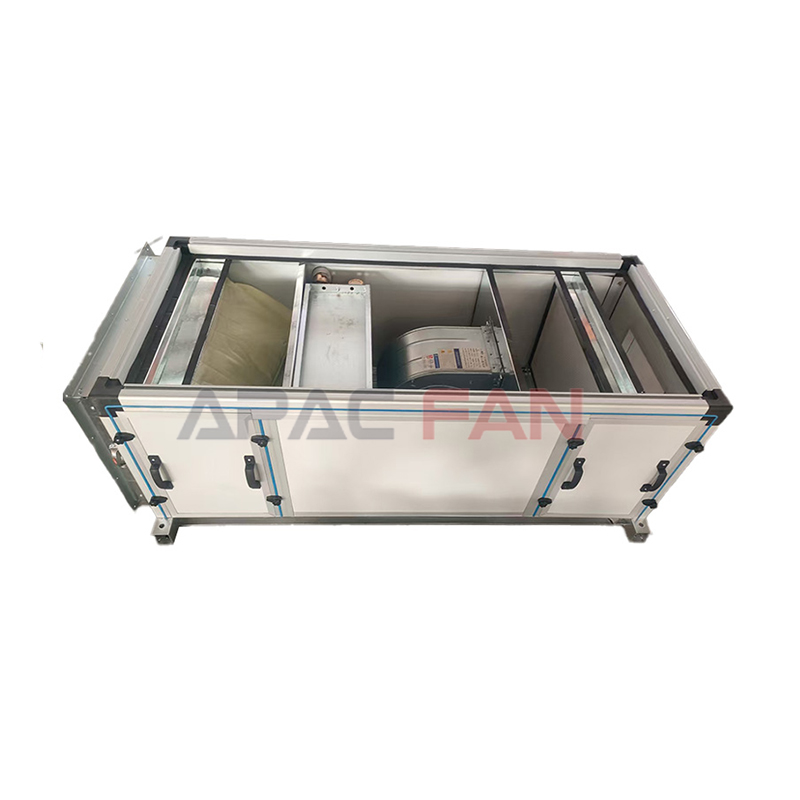

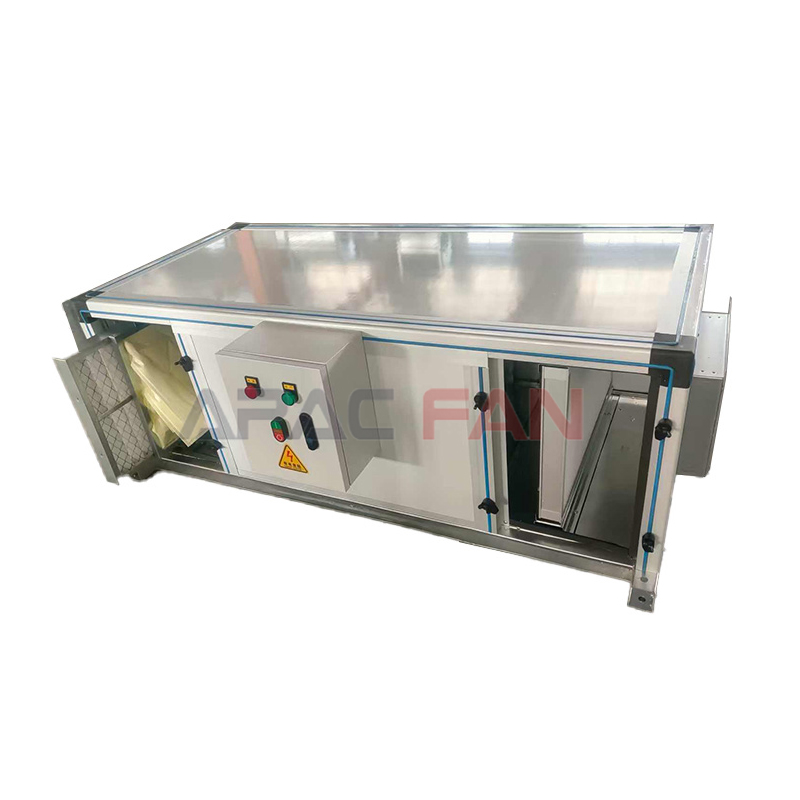

K-GX4 Series Cabinet-Type AHU
Brand：
Category：
Description：
The unit comes with a rigid base for easy transportation.
Description
The aluminum alloy (aluminum-plastic) frame features a 0.4-1mm double-layer panel with an anti-corrosion coating. The interlayer is filled with mineral wool or PU foam, providing excellent thermal insulation and preventing cold bridges and condensation leakage.
All components have been rigorously tested and are guaranteed to operate in all weather conditions.
An automatic control system can be configured for automated control and energy-saving operation.
The bottom drainage design (1.5% slope) ensures smooth condensate discharge.
Customizable options are available.
| Model | Air Volume (m³/h) | External Static Pressure (Pa) | Cooling Capacity (kW) | Chilled Water Flow Rate (m³/h) | Water Pressure Drop (KPa) | Air Pressure Drop (Pa) | Heating Capacity (kW) | Hot Water Flow Rate (m³/h) | Inlet/Outlet Water Pipe Diameter (in) | Condensate Pipe Diameter (in) | Unit Noise (dB) |
| K-GX4-03 | 3000 | 80 | 24.5 | 4.21 | 4.2 | 123 | 32.5 | 2.8 | 1.5 | 1 | 55 |
| K-GX4-04 | 4000 | 80 | 32.4 | 9.2 | 9.2 | 121 | 42.8 | 3.68 | 1.5 | 1 | 57 |
| K-GX4-05 | 5000 | 100 | 40.8 | 9.8 | 9.8 | 126 | 53.6 | 4.61 | 2 | 1 | 59 |
| K-GX4-06 | 6000 | 150 | 49 | 10.5 | 10.5 | 118 | 63.5 | 5.46 | 2 | 1 | 62 |
| K-GX4-07 | 7000 | 150 | 57.2 | 10.9 | 10.9 | 116 | 74.5 | 6.41 | 2 | 1 | 63 |
| K-GX4-08 | 8000 | 150 | 65.4 | 12.9 | 12.9 | 130 | 85.6 | 7.4 | 2 | 1 | 64 |
| K-GX4-09 | 9000 | 150 | 77.1 | 15 | 15 | 127 | 95.4 | 8.2 | 2 | 1 | 65 |
| K-GX4-10 | 10000 | 150 | 88.2 | 15.4 | 15.4 | 133 | 107.2 | 92 | 2 | 1 | 65 |
| K-GX4-15 | 15000 | 150 | 134.2 | 17.2 | 17.2 | 135 | 16.7 | 13.8 | 2 | 1 | 71 |
| K-GX4-20 | 20000 | 200 | 180.4 | 19.3 | 19.3 | 135 | 211.7 | 18.2 | 2 | 1 | 71 |
| K-GX4-25 | 25000 | 250 | 226.8 | 23 | 23 | 130 | 264.7 | 22.8 | 2 | 1 | 78 |
| K-GX4-30 | 30000 | 250 | 262.9 | 23.2 | 23.2 | 133 | 318.3 | 27.4 | 2 | 1 | 79 |
| K-GX4-40 | 40000 | 300 | 357.1 | 26.5 | 26.5 | 140 | 423.5 | 36.4 | 2.5 | 1 | 78 |
