A6D710-AH01-01 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

A6D710AH0101.PDF

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：A6D710-AH01-01
Fan Type：Axial Fan
Rated Voltage(V)：480
Size(mm)：710
Max.Air Flow(m³/h)：18960
Max.Pressure(Pa)：170
Input Power(W)：1191
Speed(rpm)：1115
Noise(db)：67

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

A6D710-AH01-01

Fan Type：

Axial Fan

Rated Voltage(V)：

480

Size(mm)：

710

Max.Air Flow(m³/h)：

18960

Max.Pressure(Pa)：

170

Input Power(W)：

1191

Speed(rpm)：

1115

Noise(db)：

67

Description

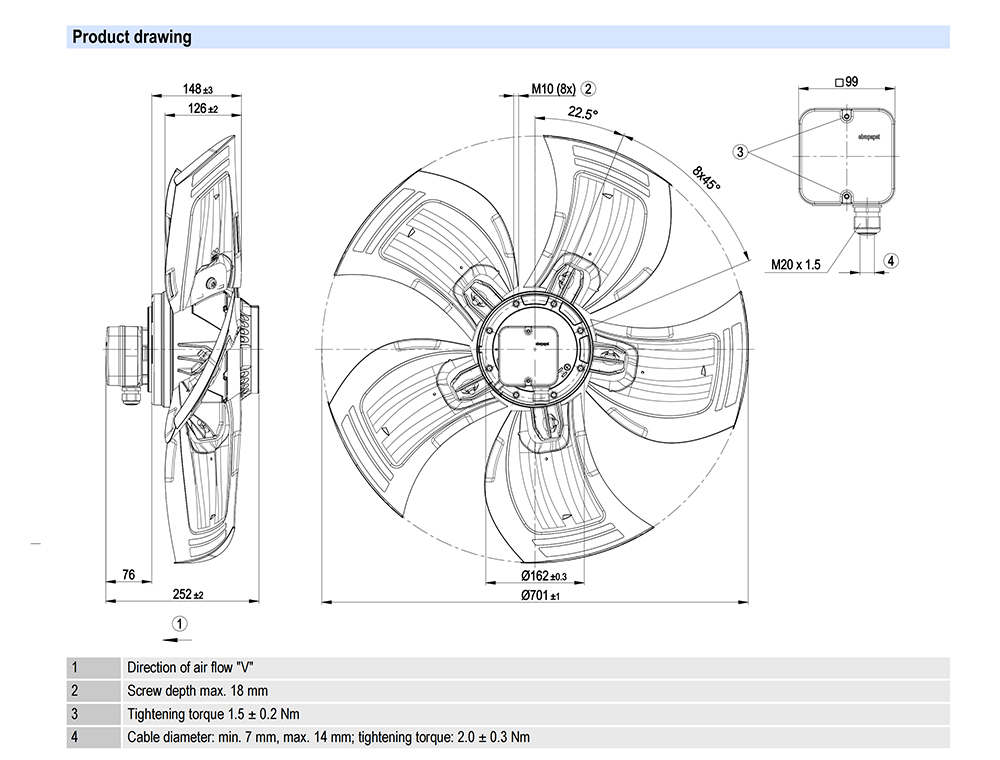

A6D710-AH01-01 Ebm-papst Specification drawing：
