A4D400-AP12-02 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

A4D400AP1202.PDF

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：A4D400-AP12-02
Fan Type：Axial Fan
Rated Voltage(V)：400
Size(mm)：400
Max.Air Flow(m³/h)：4615
Max.Pressure(Pa)：120
Input Power(W)：185
Speed(rpm)：1690

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

A4D400-AP12-02

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

400

Max.Air Flow(m³/h)：

4615

Max.Pressure(Pa)：

120

Input Power(W)：

185

Speed(rpm)：

1690

Noise(db)：

Description

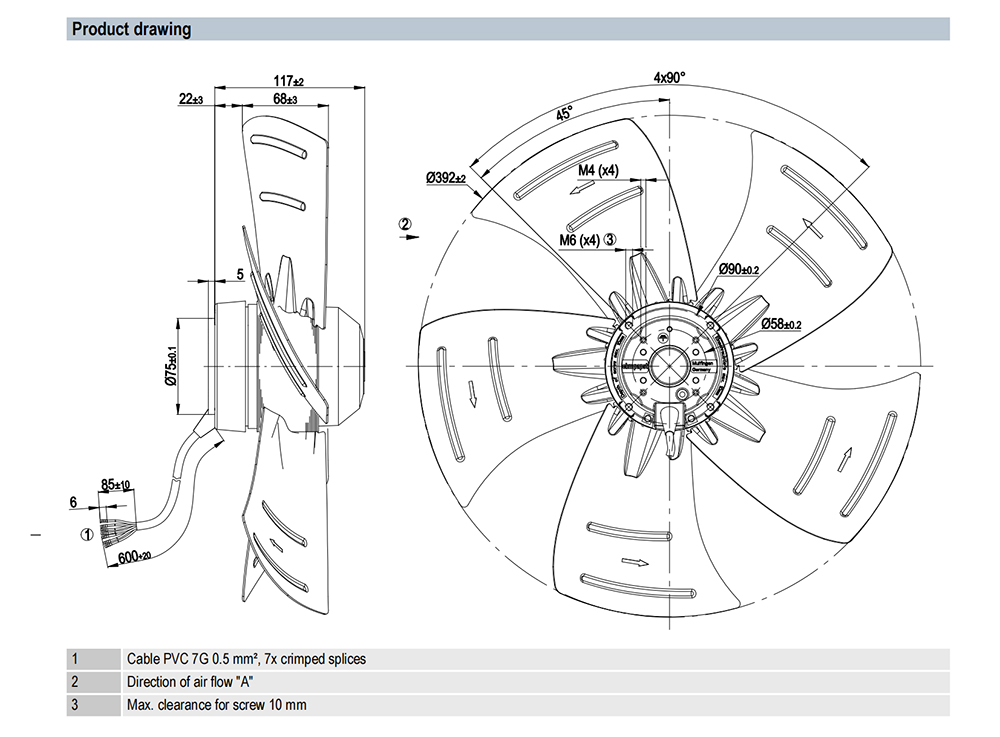

A4D400-AP12-02 Ebm-papst Specification drawing：
