A3G630-AQ37-94 Ebm-papst Axial Fan
Brand：
ebmpapst
Category：
Axial Fan
Description：
EC Axial Fan Features:
High-Efficiency EC Brushless Motor for Outstanding Energy Savings.
Supports 0–10V, PWM, Modbus and other control methods.
Long service life and minimal maintenance.
High-Efficiency EC Brushless Motor for Outstanding Energy Savings.
Supports 0–10V, PWM, Modbus and other control methods.
Long service life and minimal maintenance.
Nominal data
Brand：
ebmpapst
Part No.：
A3G630-AQ37-94
Fan Type：
Axial Fan
Rated Voltage(V)：
230
Size(mm)：
630
Max.Air Flow(m³/h)：
12110
Max.Pressure(Pa)：
140
Input Power(W)：
720
Speed(rpm)：
1000
Noise(db)：
65
Description

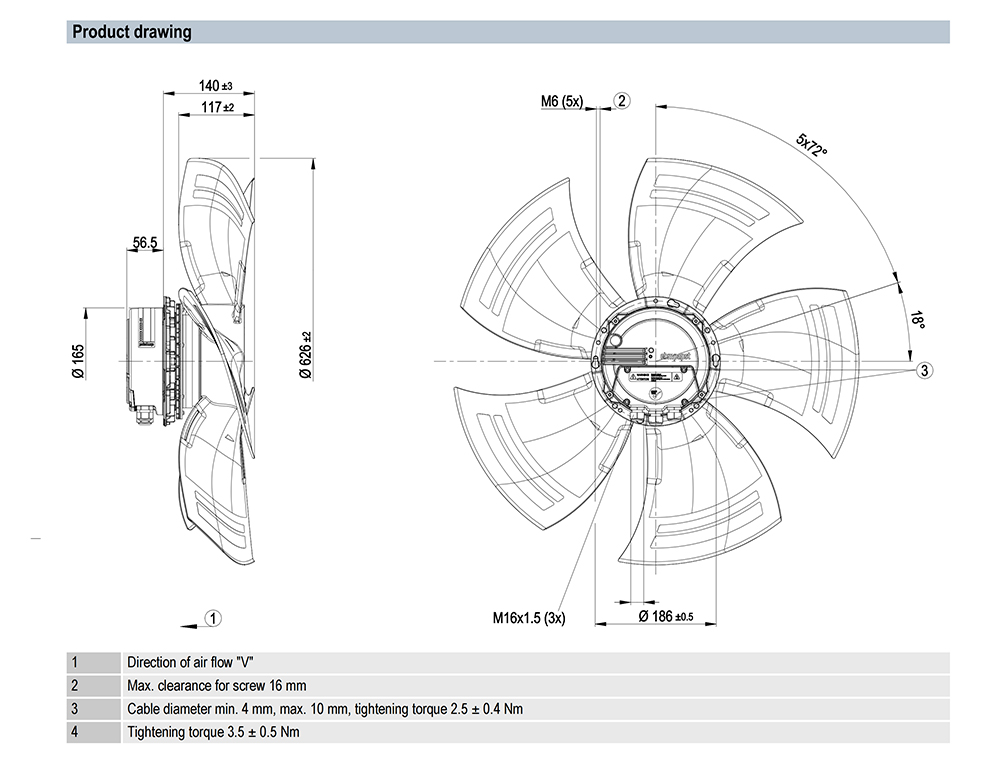

A3G630-AQ37-94 Ebm-papst Specification drawing：
