9WL0924P1H001

Brand：

San Ace

Category：

Axial Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

San Ace

Part No.：

9WL0924P1H001

Fan Type：

Axial Fan

Rated Voltage(V)：

24

Size(mm)：

92*92*38

Max.Air Flow(m³/h)：

222

Max.Pressure(Pa)：

429.9

Input Power(W)：

22.8

Speed(rpm)：

9000

Noise(db)：

61

Description

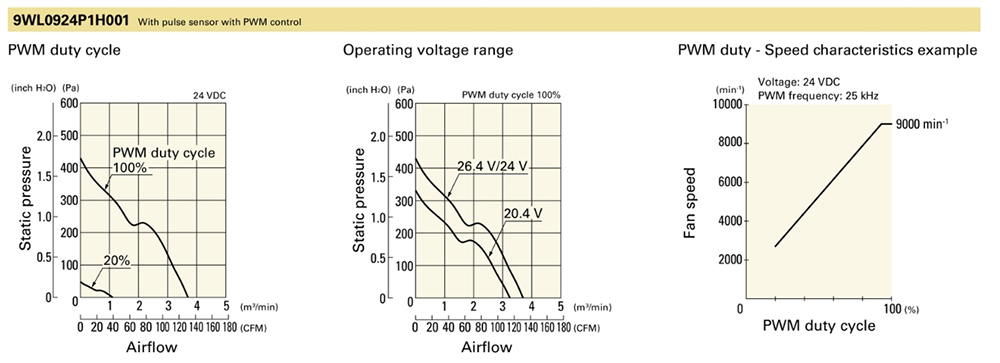

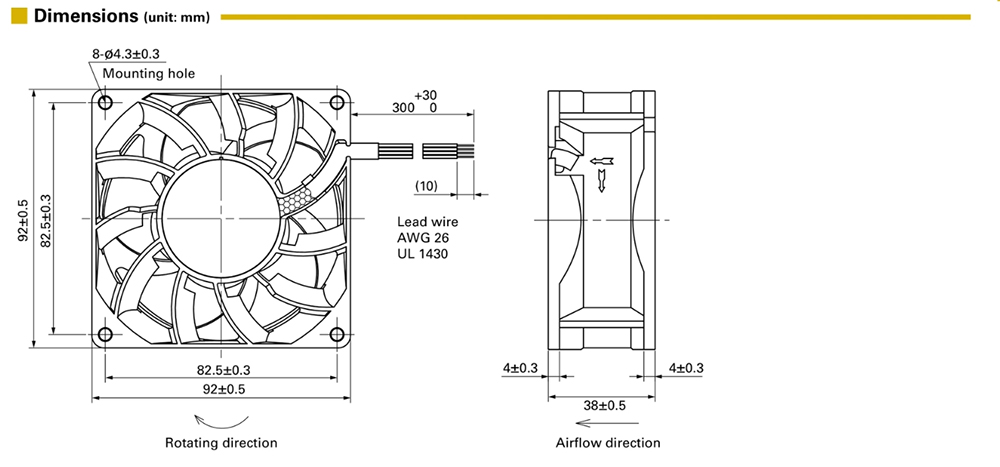

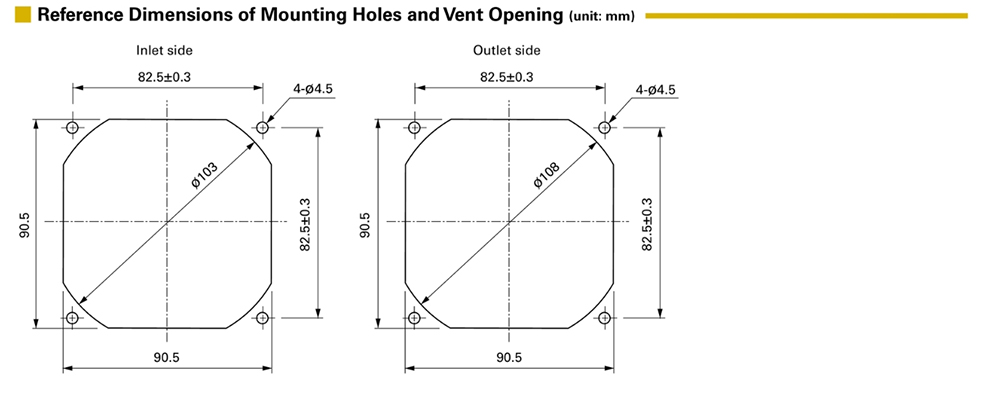

9WL0924P1H001 San Ace Specification drawing：
