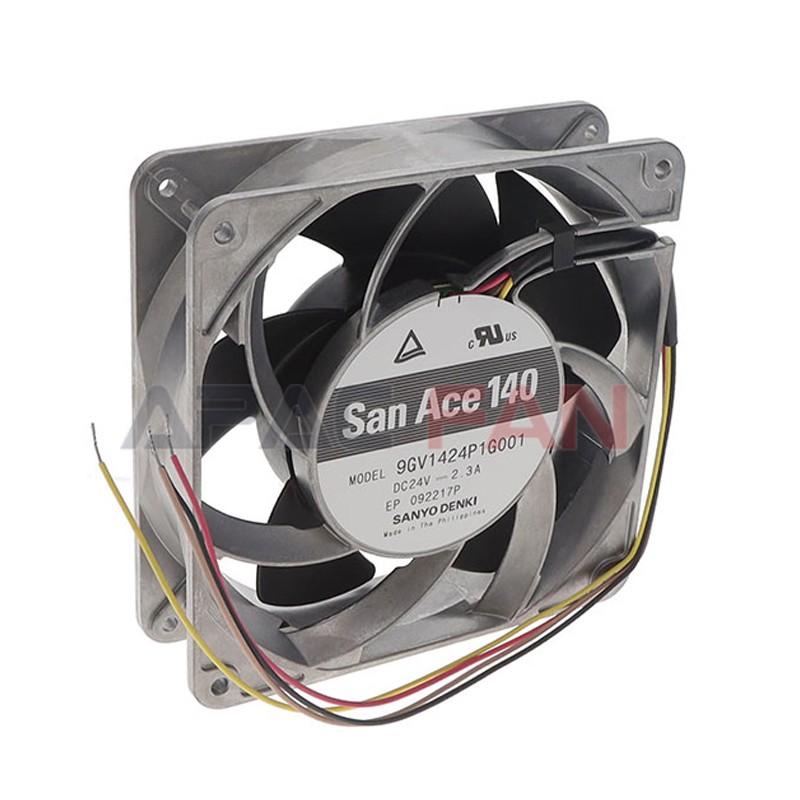

9GV1424P1G001

Brand：

San Ace

Category：

Axial Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

San Ace

Part No.：

9GV1424P1G001

Fan Type：

Axial Fan

Rated Voltage(V)：

24

Size(mm)：

140*140*38

Max.Air Flow(m³/h)：

527

Max.Pressure(Pa)：

640.1

Input Power(W)：

55.2

Speed(rpm)：

7600

Noise(db)：

70

Description

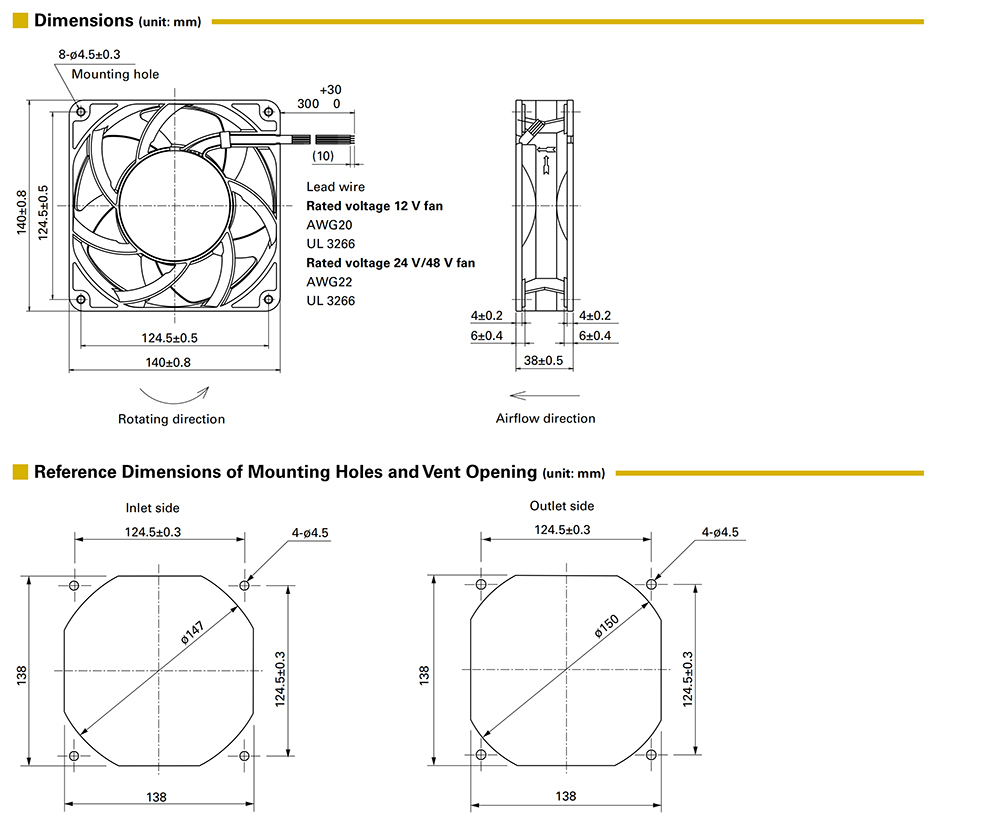

9GV1424P1G001 San Ace Specification drawing：
