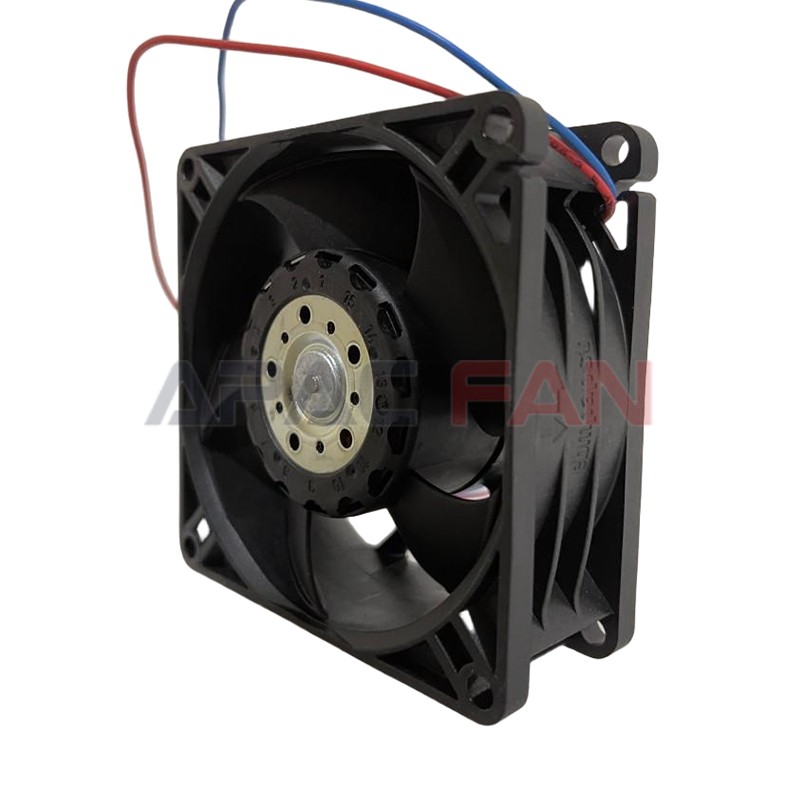

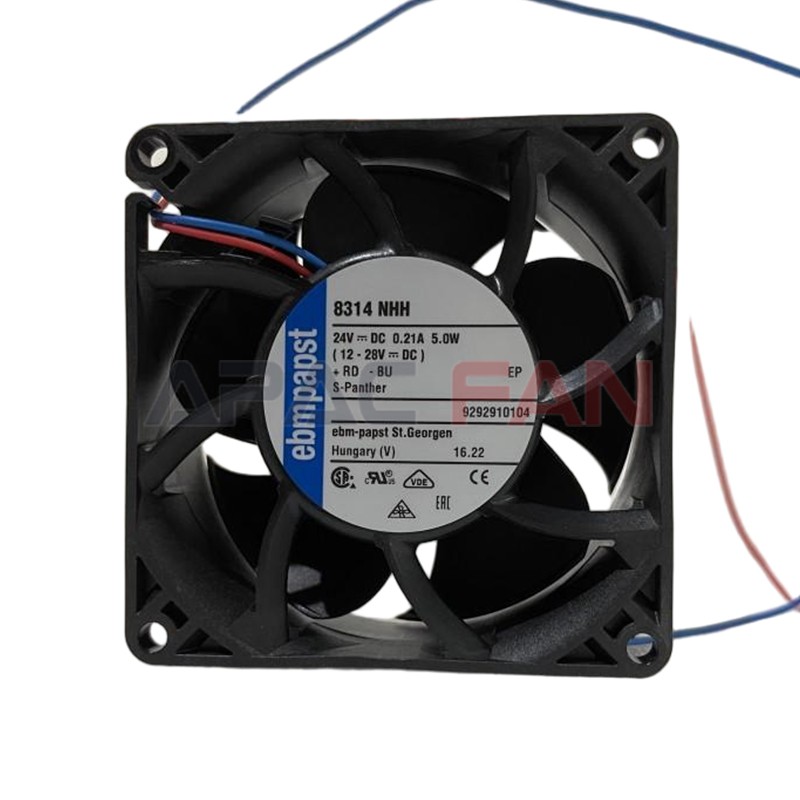

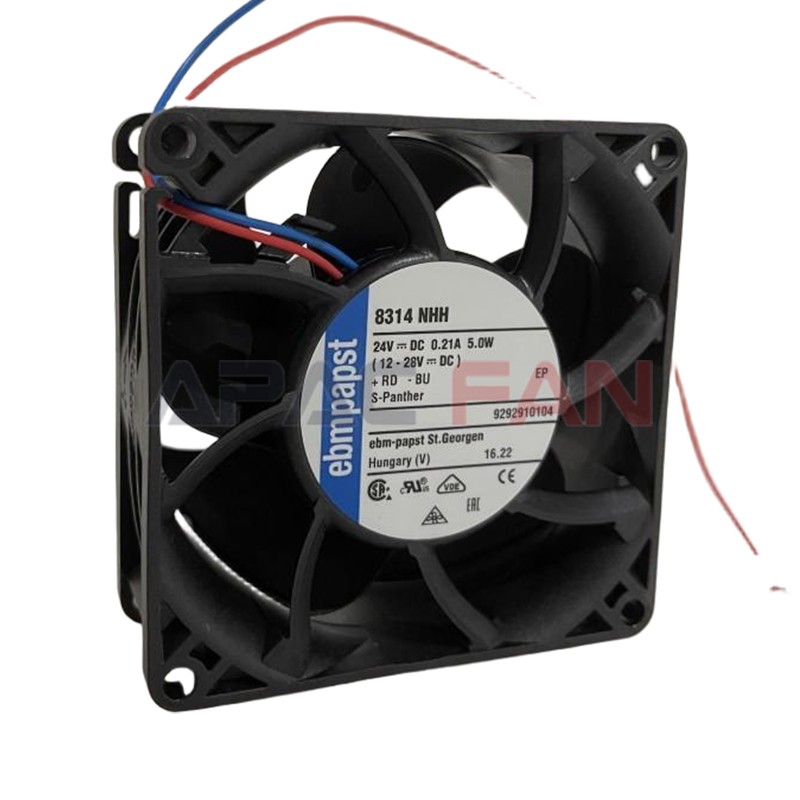

8314NHH Ebm-papst Axial Fan

Brand：

ebmpapst

Category：

Compact Fan

Description：

Brand：ebmpapst
Part No：8314NHH
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：80*80*32
Max.Air Flow(m³/h)：95
Input Power(W)：5
Speed(rpm)：6300
Noise(db)：50

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

8314NHH

Fan Type：

Compact Fan

Rated Voltage(V)：

24

Size(mm)：

80*80*32

Max.Air Flow(m³/h)：

95

Max.Pressure(Pa)：

Input Power(W)：

5

Speed(rpm)：

6300

Noise(db)：

50

Description

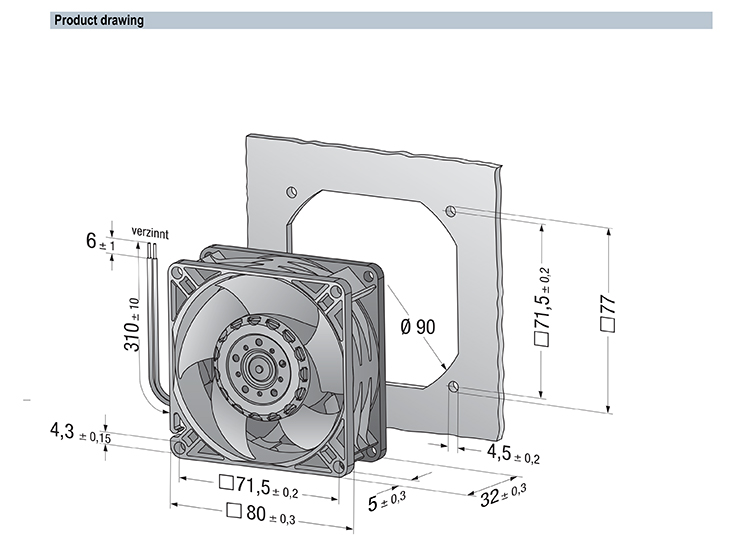

8314NHH Ebm-papst Specification drawing：
