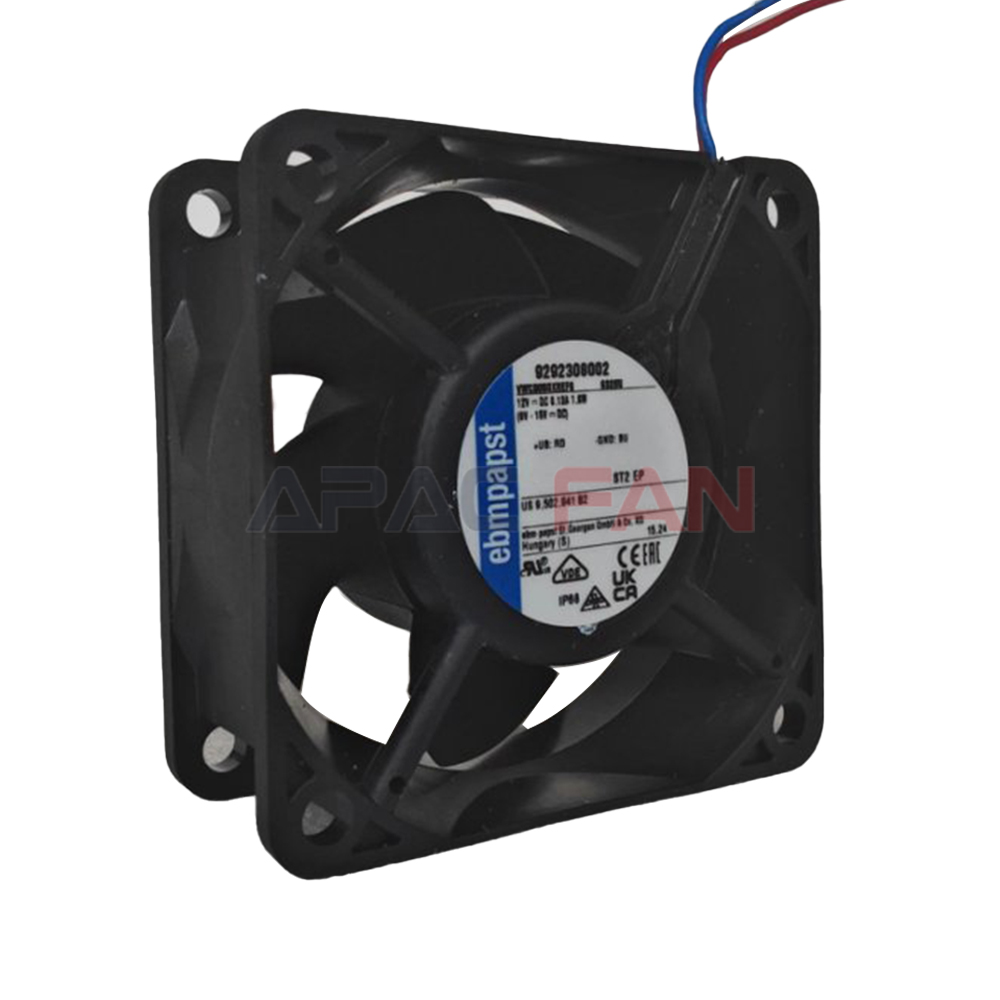

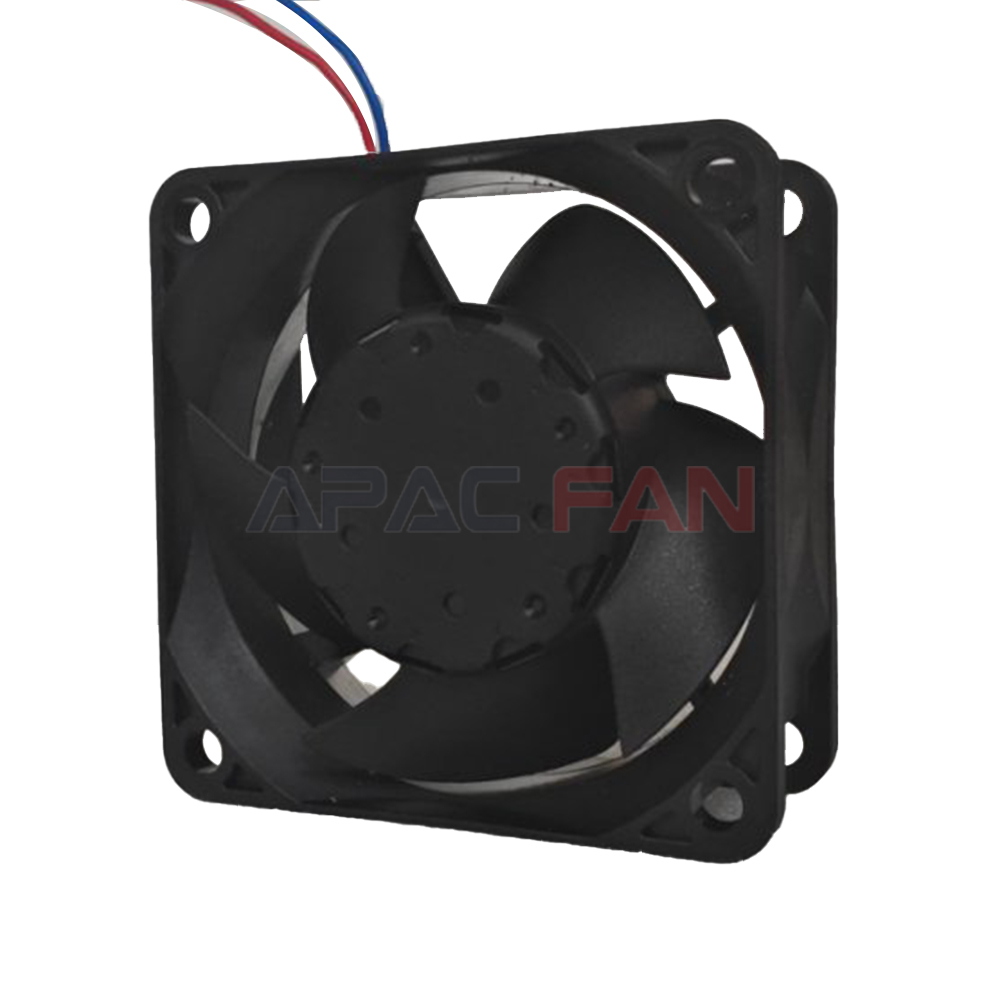

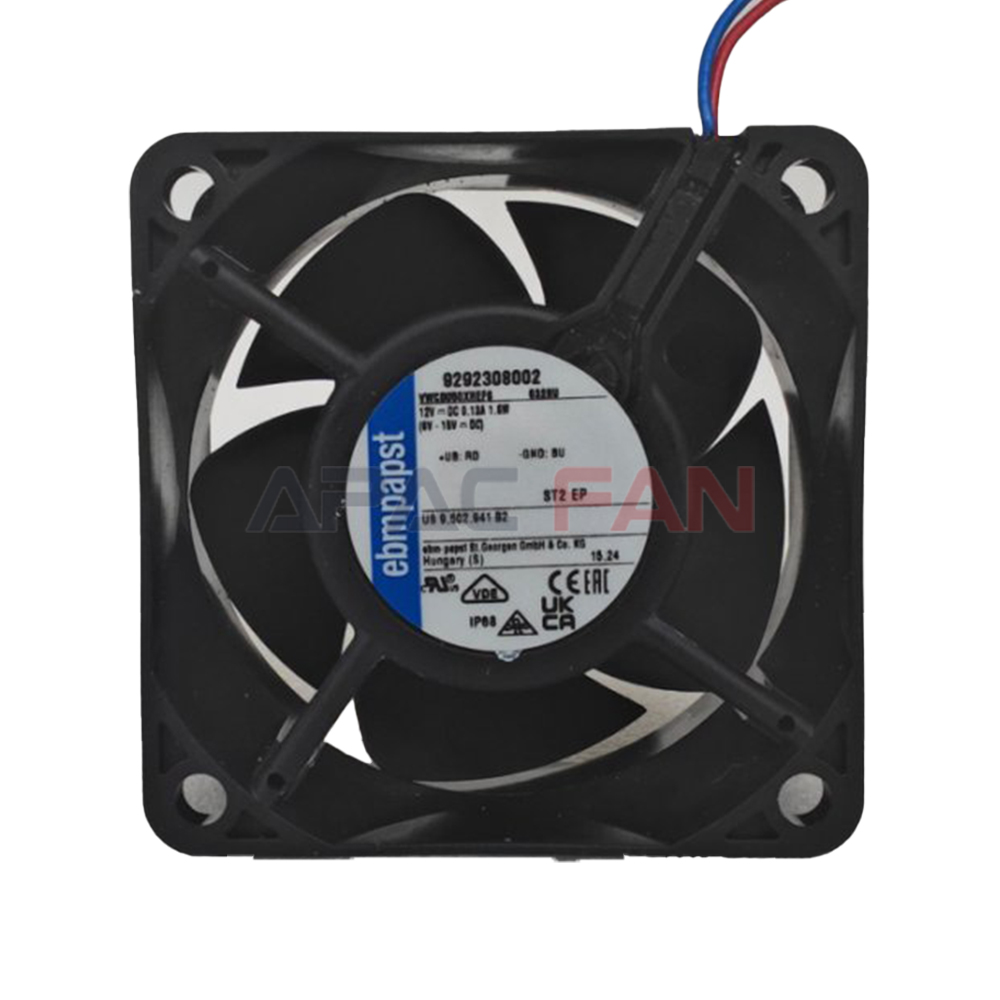

Product
632NU
Brand:
ebmpapst
Document:
Category:
Compact Fan
Description:
Type: DC Tubeaxial Fan
Air output (m³/h): 40
Speed (RPM): 5900
Min Operating Temperature: -20 °C
Plastic Impeller and Housing
Air output (m³/h): 40
Speed (RPM): 5900
Min Operating Temperature: -20 °C
Plastic Impeller and Housing
Nominal data
Brand:
ebmpapst
Part No.:
632NU
Fan Type:
Compact Fan
Rated Voltage(V):
12
Size(mm):
60*60*25

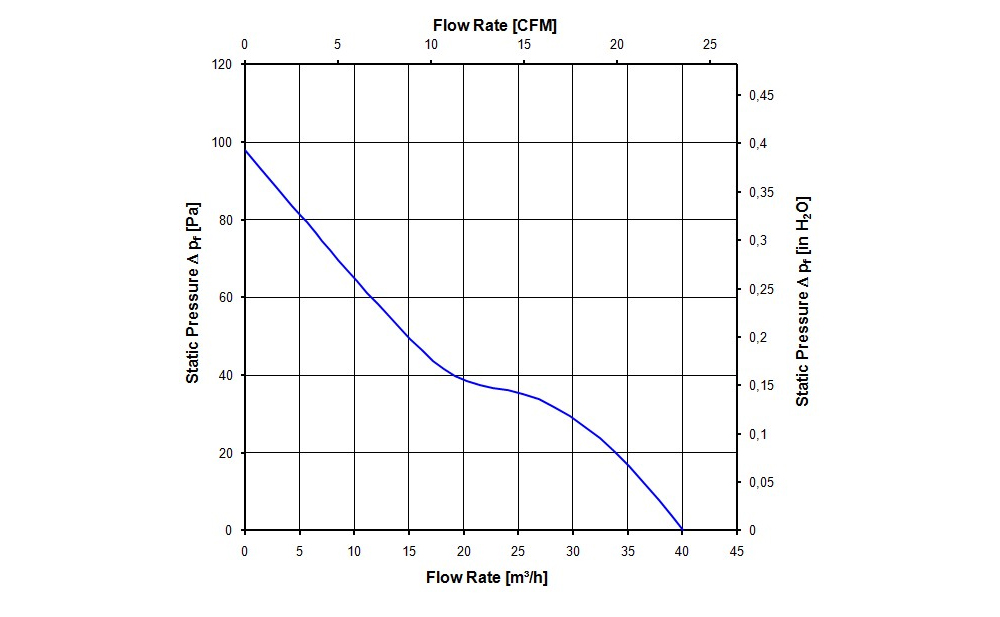

Max.Air Flow(m³/h):
40
Max.Pressure(Pa):
98
Input Power(W):
1.8
Speed(rpm):
5900
Noise(db):
34
Description

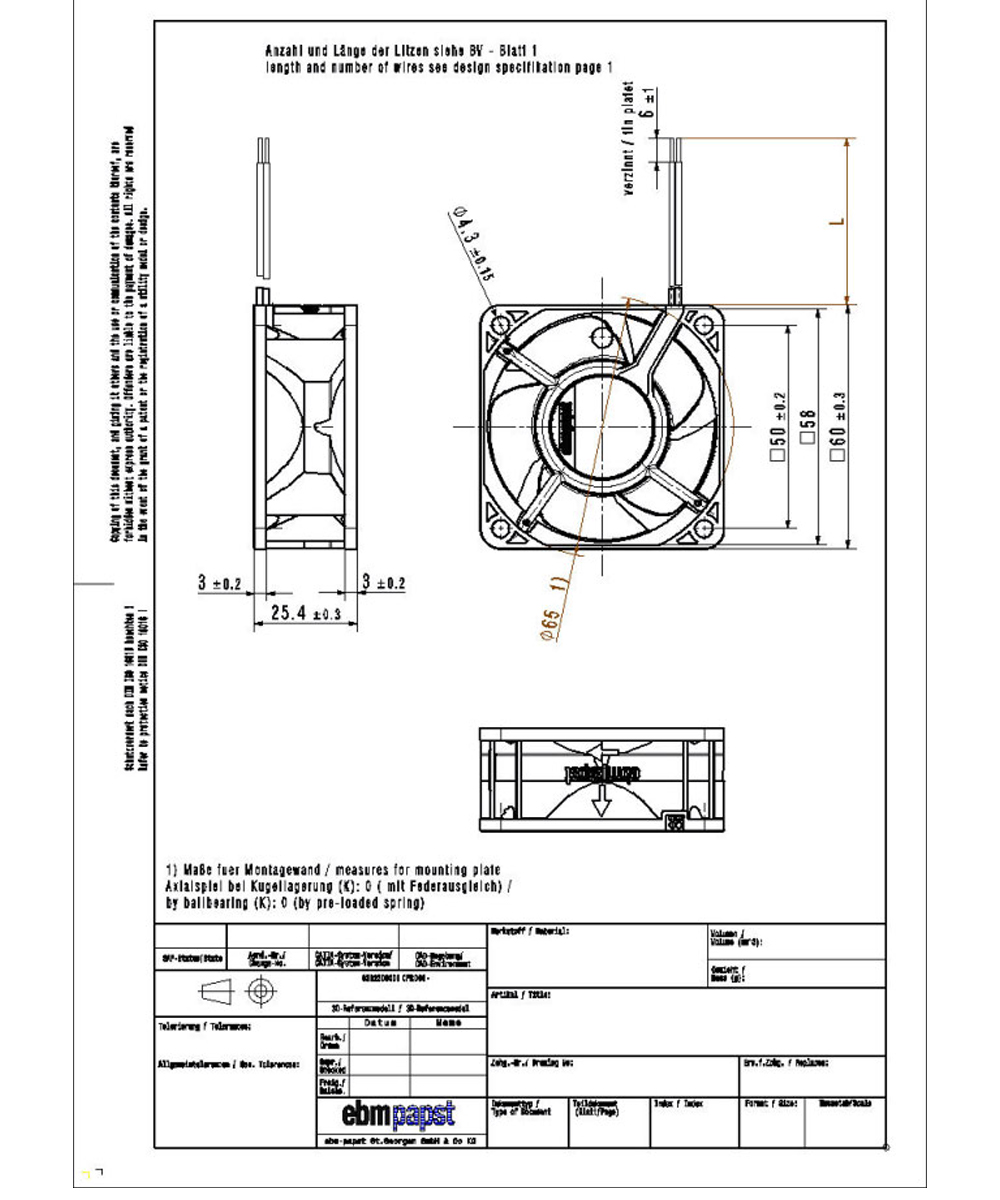

632NU ebmpapst Specification Drawing:
