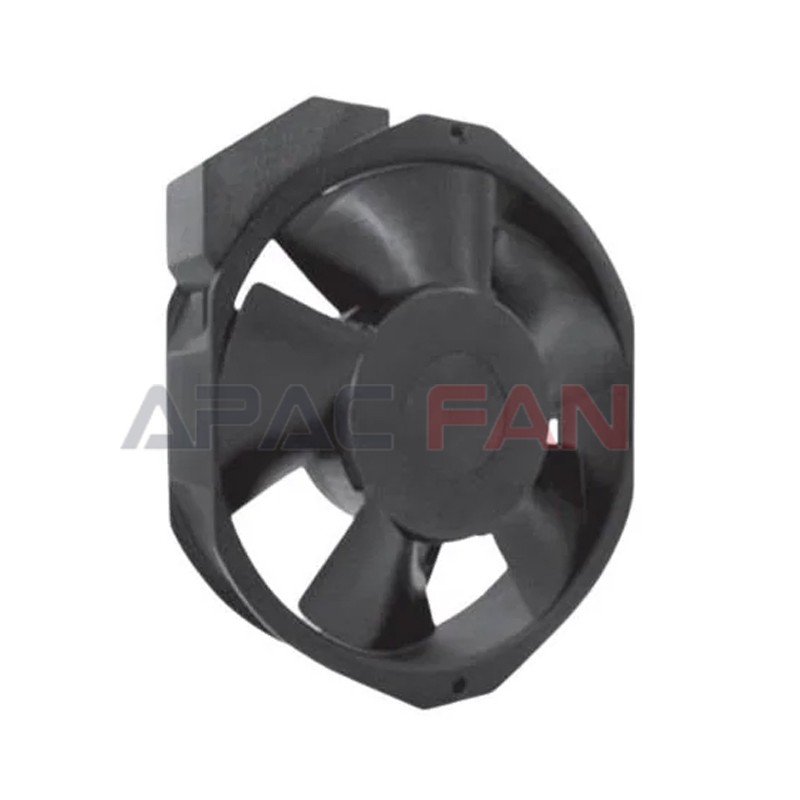

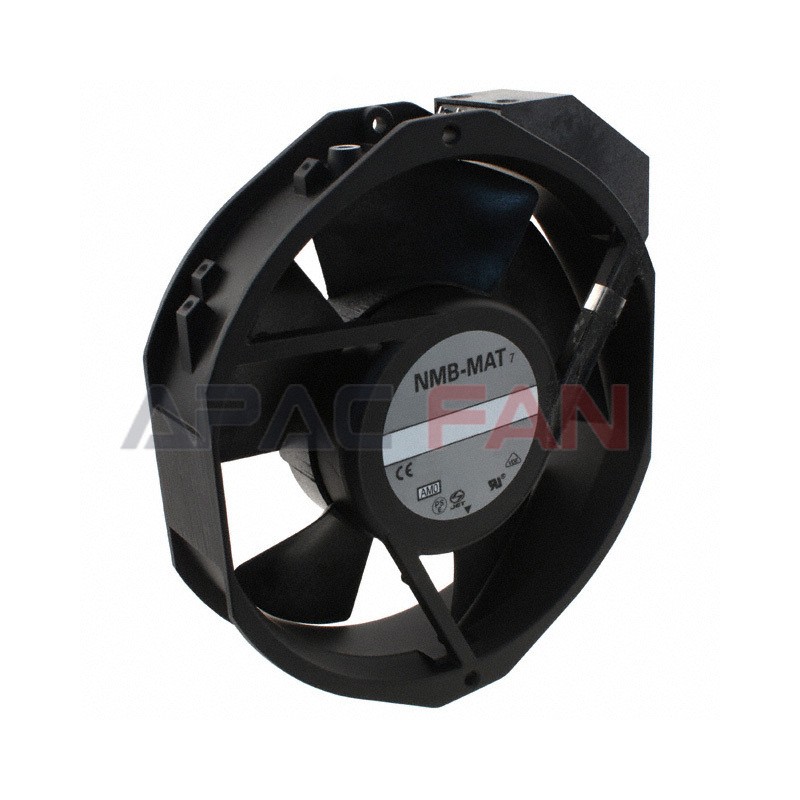

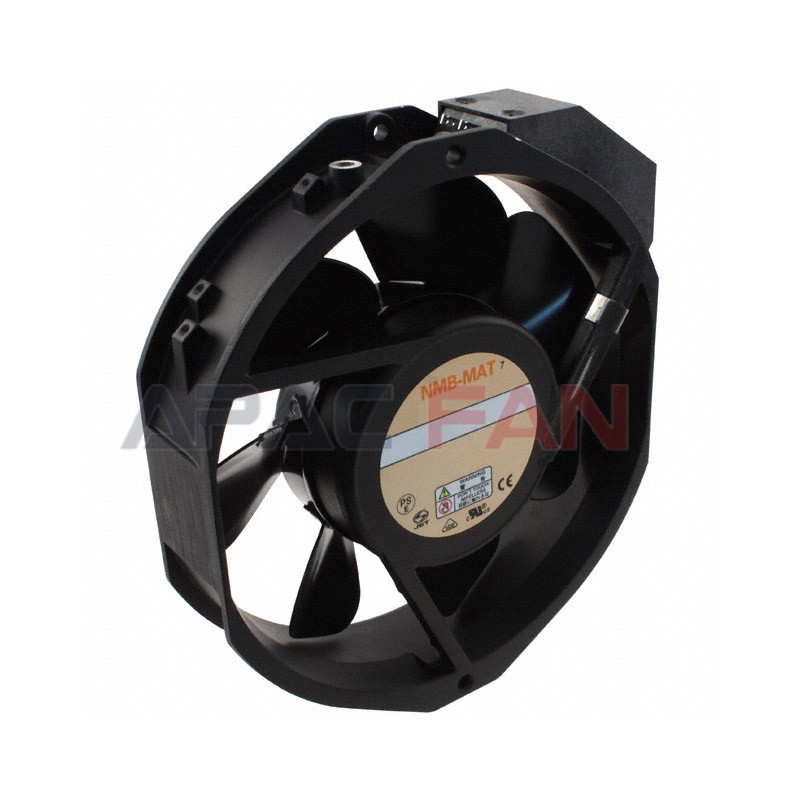

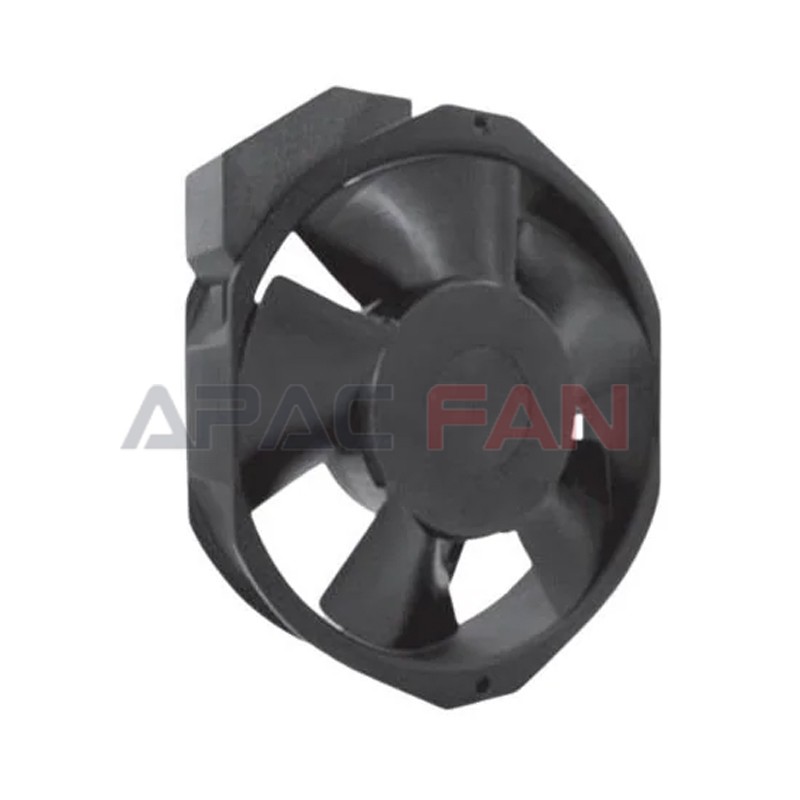

5915PC-22T-B10-B00 NMB 220V AC Cooling Fan, Aluminum Frame for Telecom & UPS

Brand：

NMB-MAT

Category：

Axial Fan

Description：

220V mainstream voltage with constant static pressure. Designed for large UPS and telecom base stations with extreme temperature resistance.

00852-56261528 info@apacfan.com

Nominal data

Brand：

NMB-MAT

Part No.：

5915PC-22T-B10-B00

Fan Type：

Axial Fan

Rated Voltage(V)：

220

Size(mm)：

172*150*38

Max.Air Flow(m³/h)：

174

Max.Pressure(Pa)：

60.7

Input Power(W)：

Speed(rpm)：

1650

Noise(db)：

Description

5915PC-22T-B10-B00 NMB-MAT Specification drawing：
