4314NN
Brand：
ebmpapst
Category：
Compact Fan
Description：
Brand：ebmpapst
Part No：4314NN
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：120*120*32
Max.Air Flow(m³/h)：187
Max.Pressure(Pa)：66
Input Power(W)：4.1
Speed(rpm)：2700
Noise(db)：50
Part No：4314NN
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：120*120*32
Max.Air Flow(m³/h)：187
Max.Pressure(Pa)：66
Input Power(W)：4.1
Speed(rpm)：2700
Noise(db)：50
Nominal data
Brand：
ebmpapst
Part No.：
4314NN
Fan Type：
Compact Fan
Rated Voltage(V)：
24
Size(mm)：
Max.Air Flow(m³/h)：
187
Max.Pressure(Pa)：
66
Input Power(W)：
4.1
Speed(rpm)：
2700
Noise(db)：
50
Description

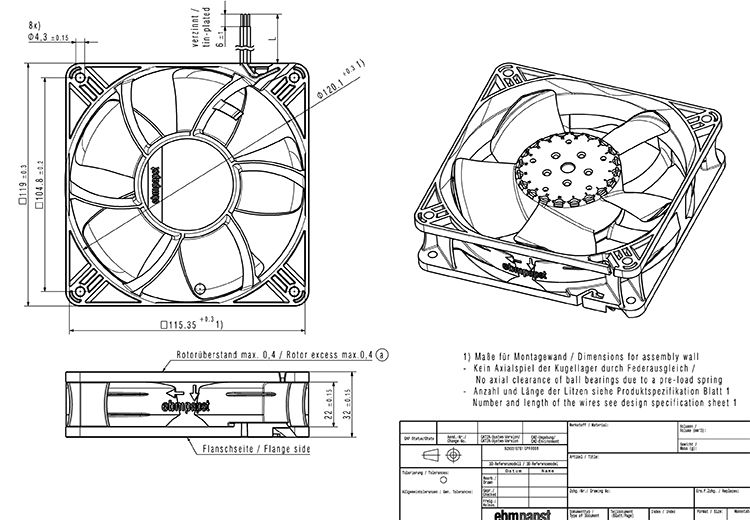

4314NN Ebm-papst Specification drawing：
