Product
4114 N/2H5
Brand:
ebmpapst
Document:
Category:
Compact Fan
Description:
Type: DC Tubeaxial Fan
Air output (m³/h): 390
Speed (RPM): 7500
Min Ambient Temperature: -25 °C
Plastic Impeller and Die-cast Aluminum Housing
Air output (m³/h): 390
Speed (RPM): 7500
Min Ambient Temperature: -25 °C
Plastic Impeller and Die-cast Aluminum Housing
Nominal data
Brand:
ebmpapst
Part No.:
4114 NH5
Fan Type:
Compact Fan
Rated Voltage(V):
24
Size(mm):
119*119*38
Max.Air Flow(m³/h):
390
Max.Pressure(Pa):
595
Input Power(W):
46
Speed(rpm):
7500
Noise(db):
70
Description

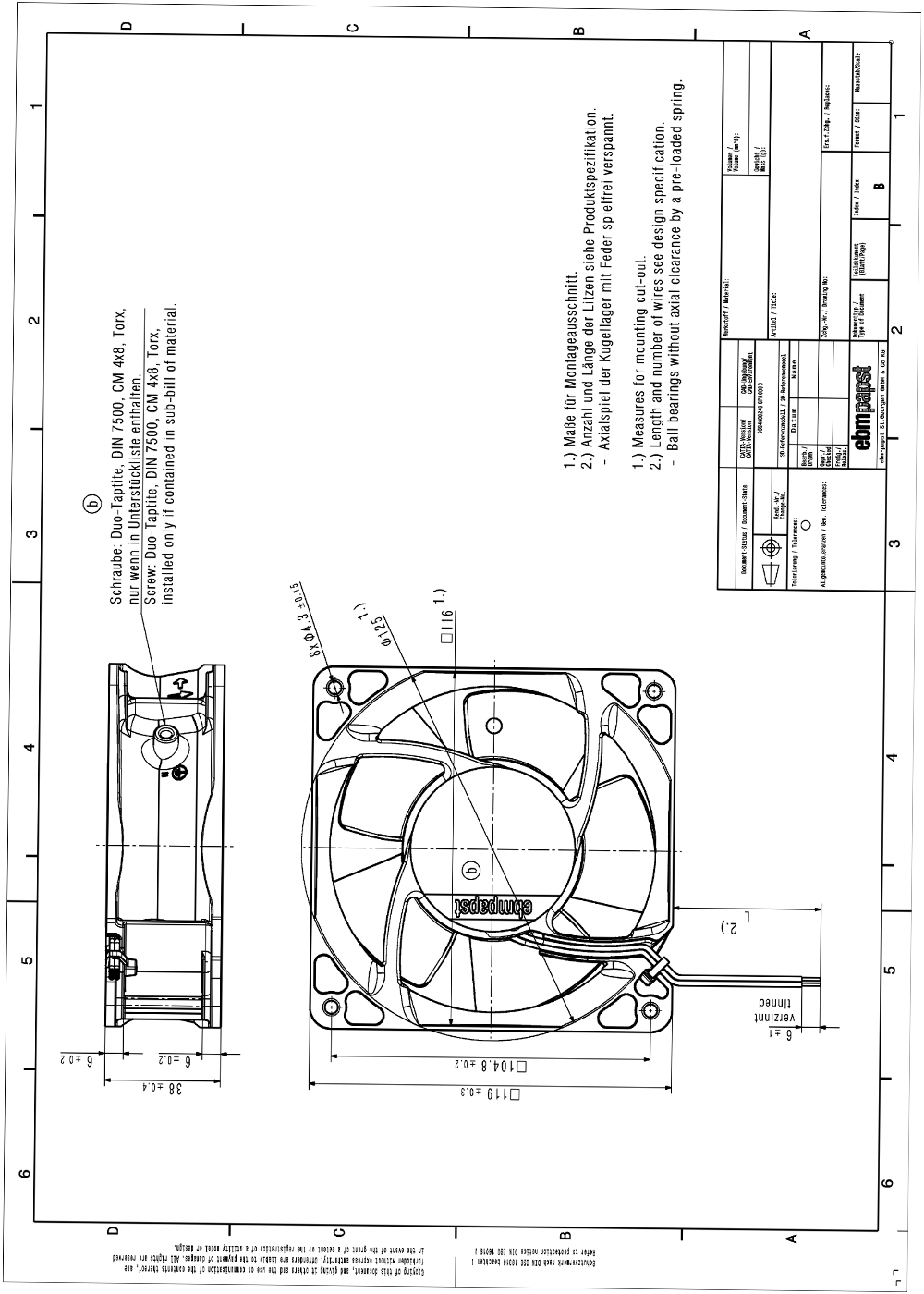

4114 N/2H5 ebmpapst Specification Drawing:
