4114N/2H4PU
Brand：
ebmpapst
Document：
Category：
Compact Fan
Description：
Brand：ebmpapst
Part No：4114N/2H4PU
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：120*120*38
Max.Air Flow(m³/h)：350
Max.Pressure(Pa)：425
Input Power(W)：33.1
Speed(RPM)：6800
Part No：4114N/2H4PU
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：120*120*38
Max.Air Flow(m³/h)：350
Max.Pressure(Pa)：425
Input Power(W)：33.1
Speed(RPM)：6800
Nominal data
Brand：
ebmpapst
Part No.：
4114N/2H4PU
Fan Type：
Compact Fan
Rated Voltage(V)：
24
Size(mm)：
120*120*38
Max.Air Flow(m³/h)：
350
Max.Pressure(Pa)：
Input Power(W)：
33.1
Speed(rpm)：
6800
Noise(db)：
Description

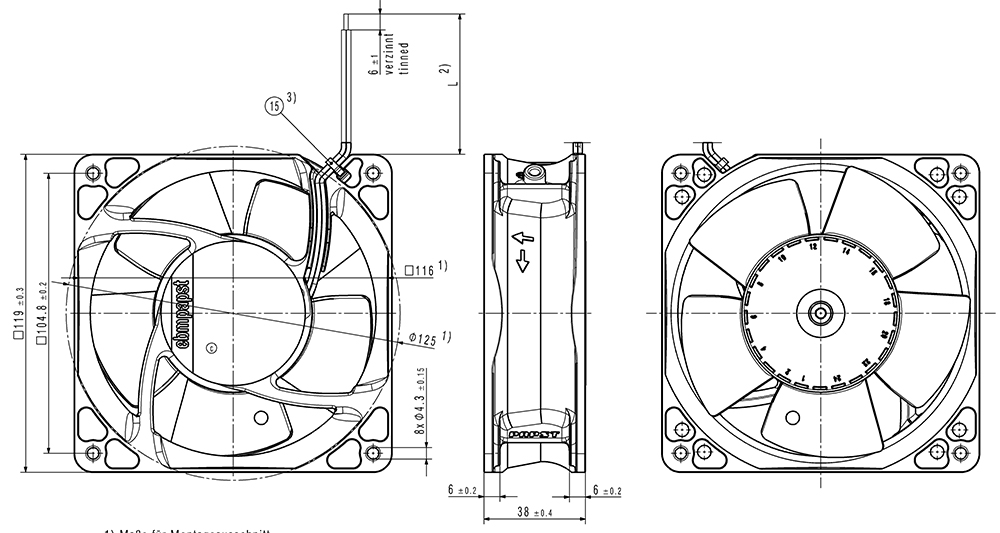

4114N/2H4PU Ebm-papst Specification drawing：
