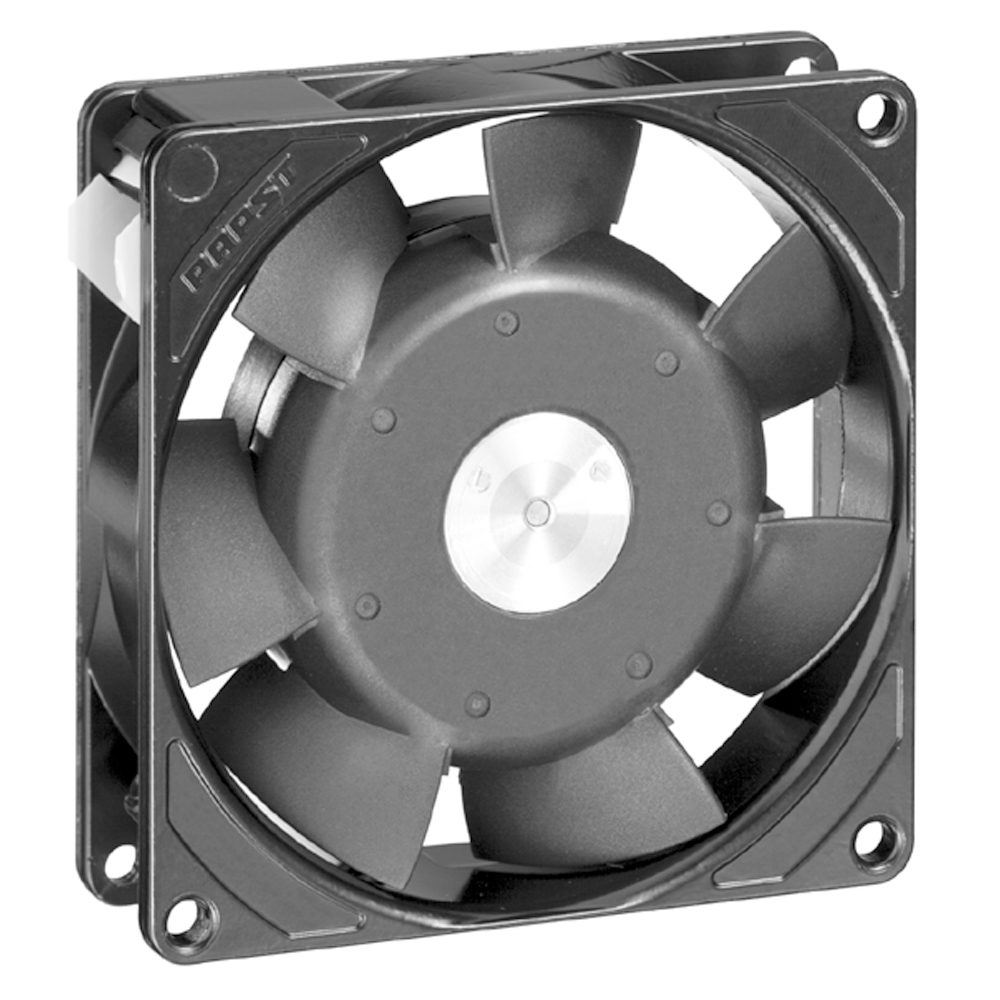

Product
3956L
Brand:
ebmpapst
Document:
Category:
Compact Fan
Description:
Type: AC Tubeaxial Fan
Air output (m³/h): 31
Speed (RPM): 1550
Min Ambient Temperature: -40 °C
Plastic Impeller and Die-cast Aluminum Housing
Air output (m³/h): 31
Speed (RPM): 1550
Min Ambient Temperature: -40 °C
Plastic Impeller and Die-cast Aluminum Housing
Nominal data
Brand:
ebmpapst
Part No.:
3956L
Fan Type:
Compact Fan
Rated Voltage(V):
230
Size(mm):
92*92*25
Max.Air Flow(m³/h):
31
Max.Pressure(Pa):
Input Power(W):
6
Speed(rpm):
1550
Noise(db):
24
Description

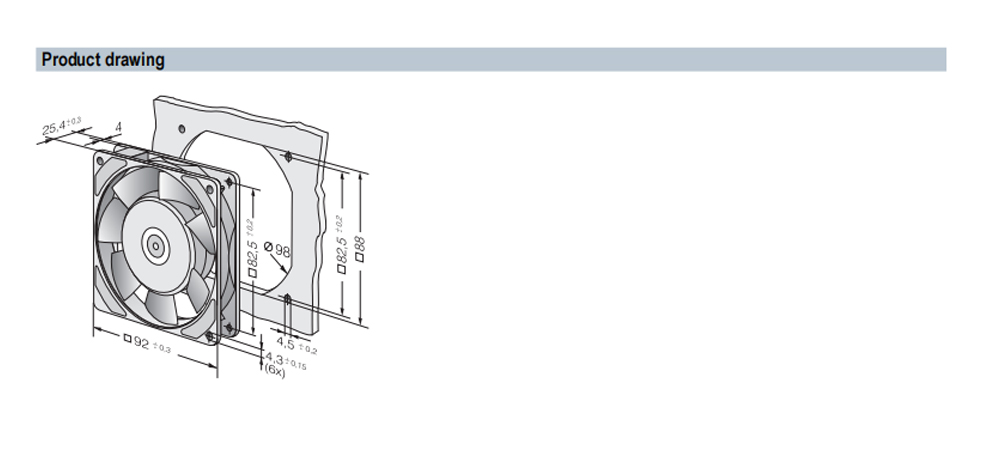

3956L ebmpapst Specification Drawing:
