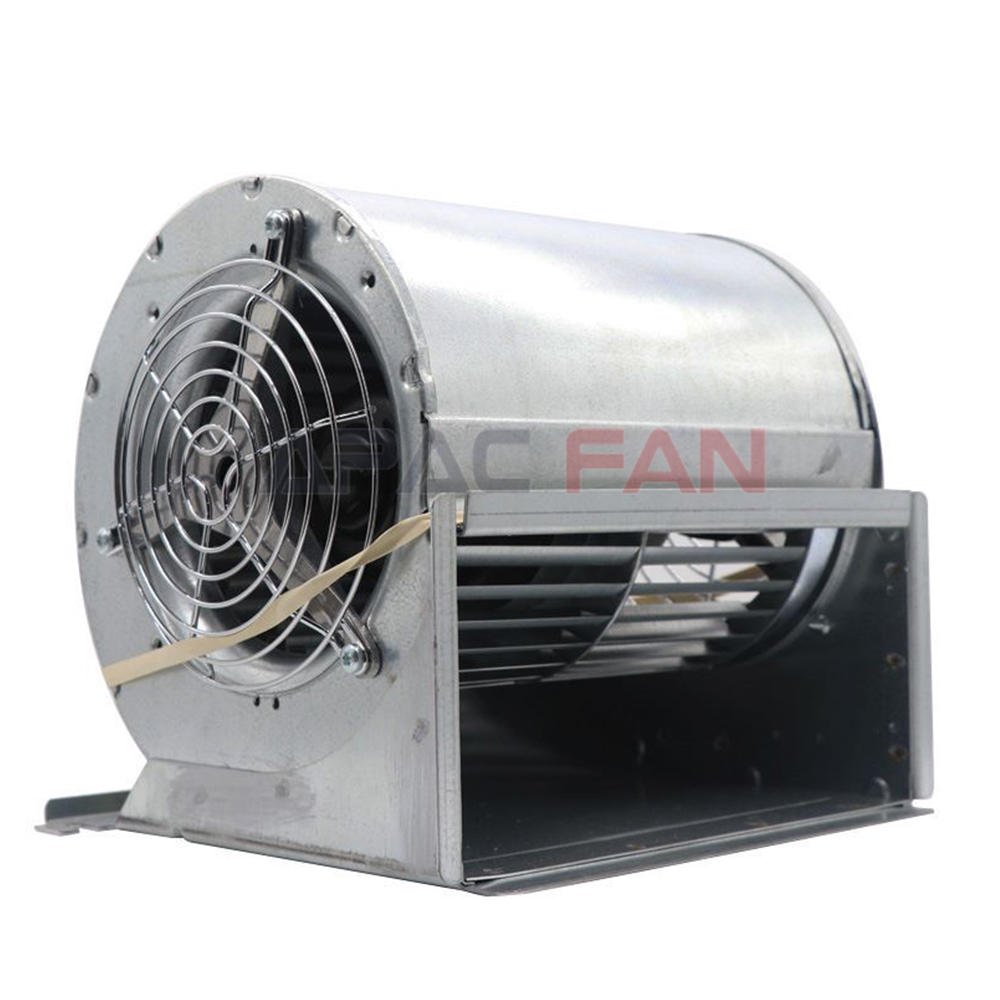

2GDF65 146*180L Z18-26

Brand:
rosenberg
Category:
Centrifugal Fan
Description:
Type: AC Centrifugal Fan
Air output (m³/h): 1090
Speed ​​(RPM): 1940
Min. Ambient Temperature: -20 °C
Galvanized steel impeller

Nominal data

Brand:
rosenberg
Part No.:
2GDF65 146*180L Z18-26
Fan Type:
Centrifugal Fan
Rated Voltage(V):
230
Size(mm):
Max.Air Flow(m³/h):
1090
Max.Pressure(Pa):
500
Input Power(W):
340
Speed(rpm):
1940
Noise(db):
68

Description

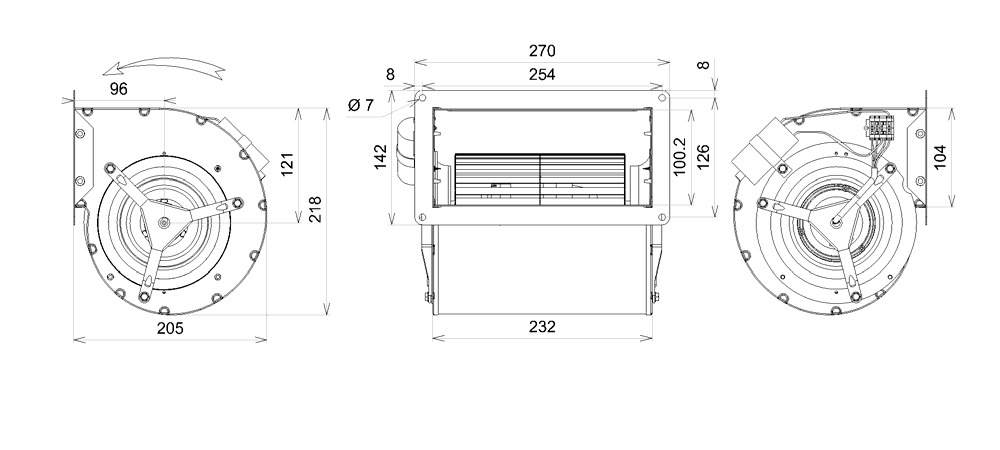

2GDF65 146*180L Z18-26 ECOFIT Specification Drawing:
