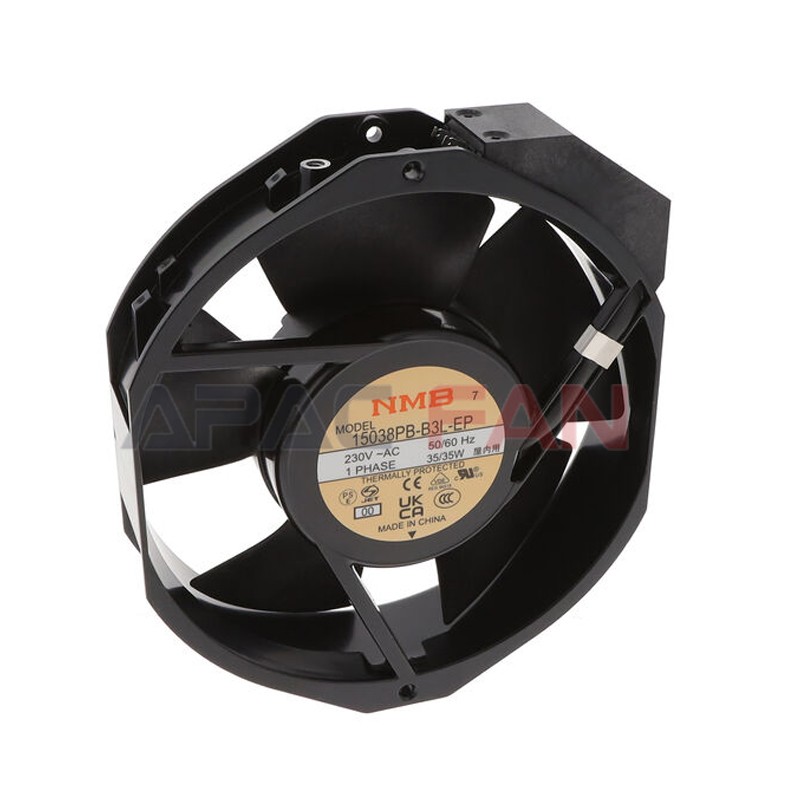

15038PB-B3L-EP-00 NMB 15038 Fan for Stage Lighting & Large Projector, Quiet Cooling

Brand：

NMB-MAT

Document：

15038PB-B3L-EP-00.PDF

Category：

Axial Fan

Description：

Excellent dynamic balance in large size to reduce vibration. Ideal for stage lights and outdoor projectors requiring stability and low noise.

00852-56261528 info@apacfan.com

Nominal data

Brand：

NMB-MAT

Part No.：

15038PB-B3L-EP-00

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

172*150*38

Max.Air Flow(m³/h)：

364

Max.Pressure(Pa)：

215.8

Input Power(W)：

Speed(rpm)：

3200

Noise(db)：

Description

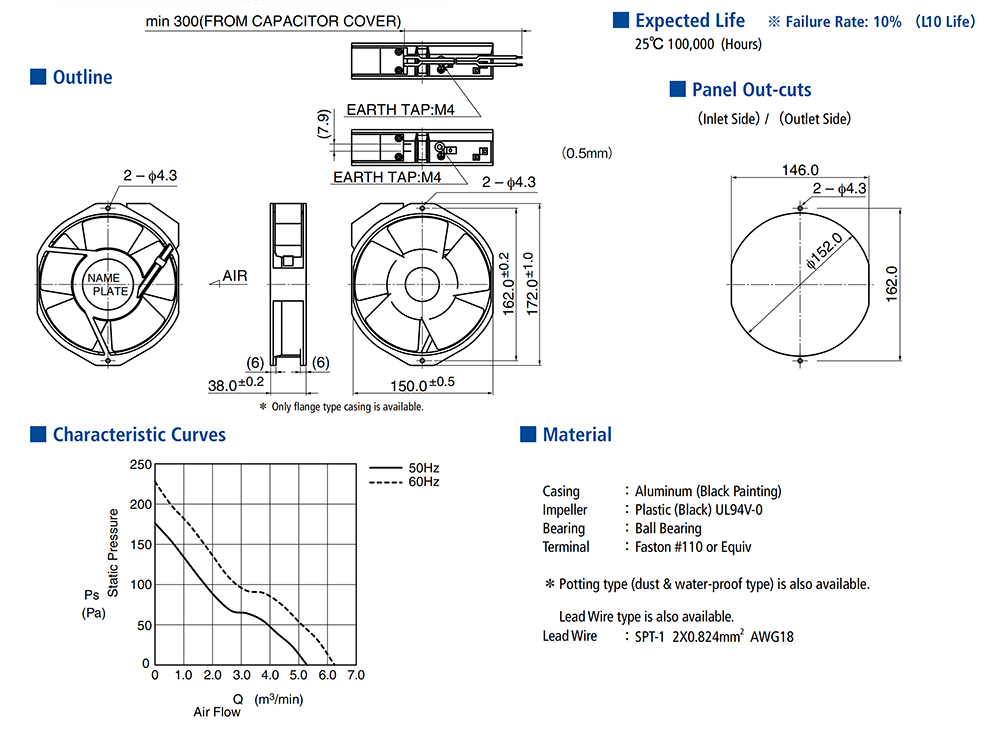

15038PB-B3L-EP-00 NMB-MAT Specification drawing：
