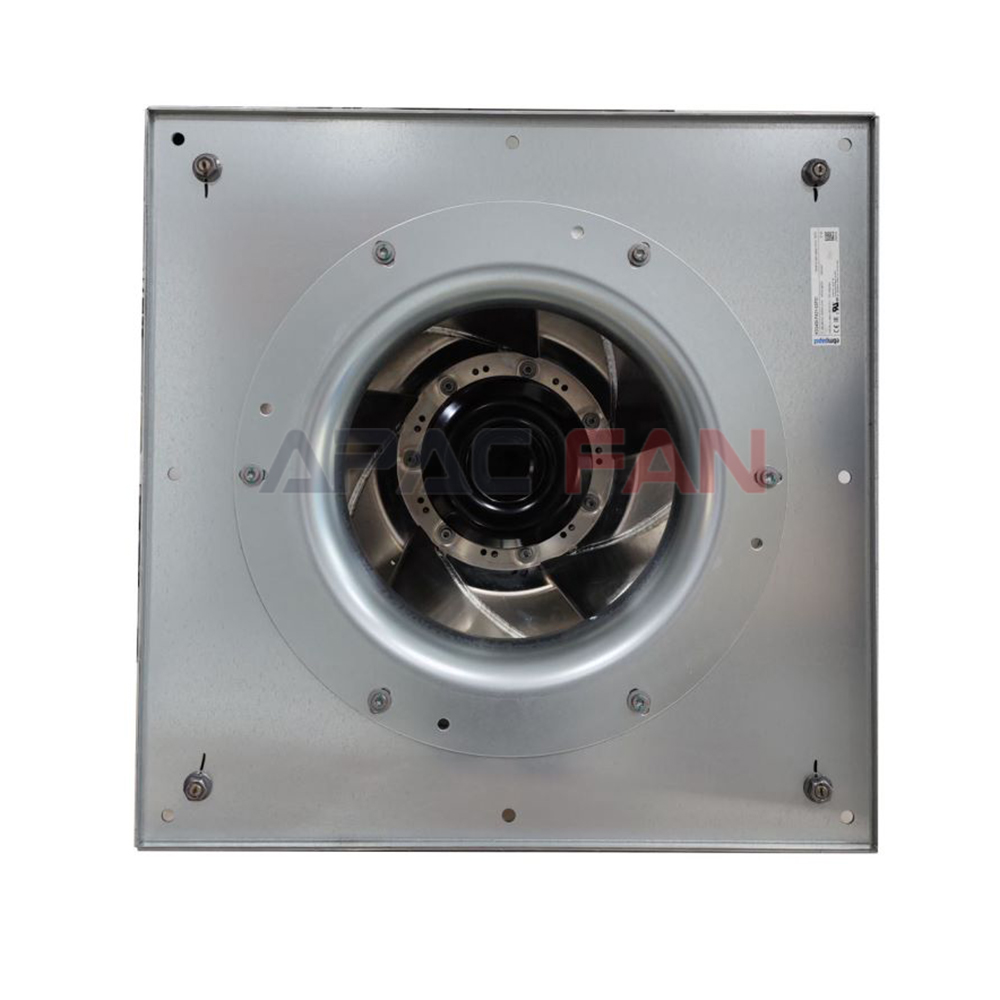

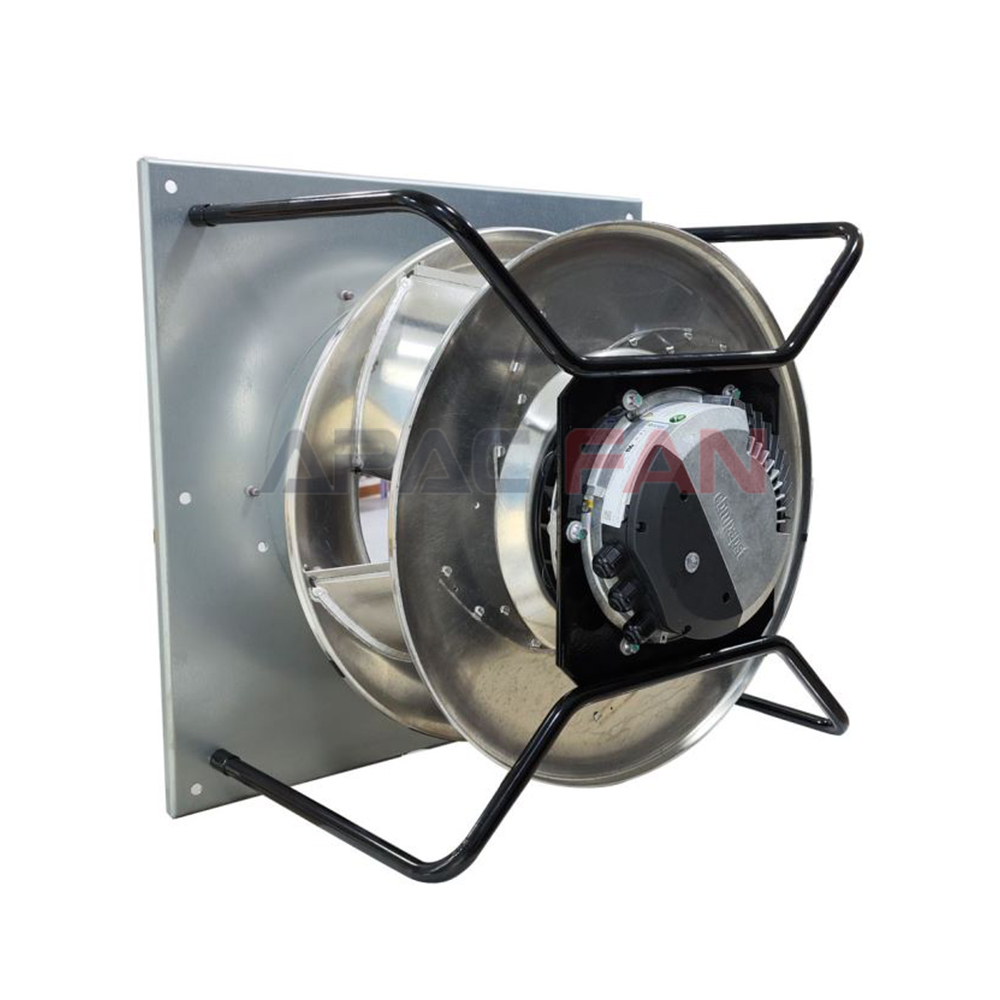

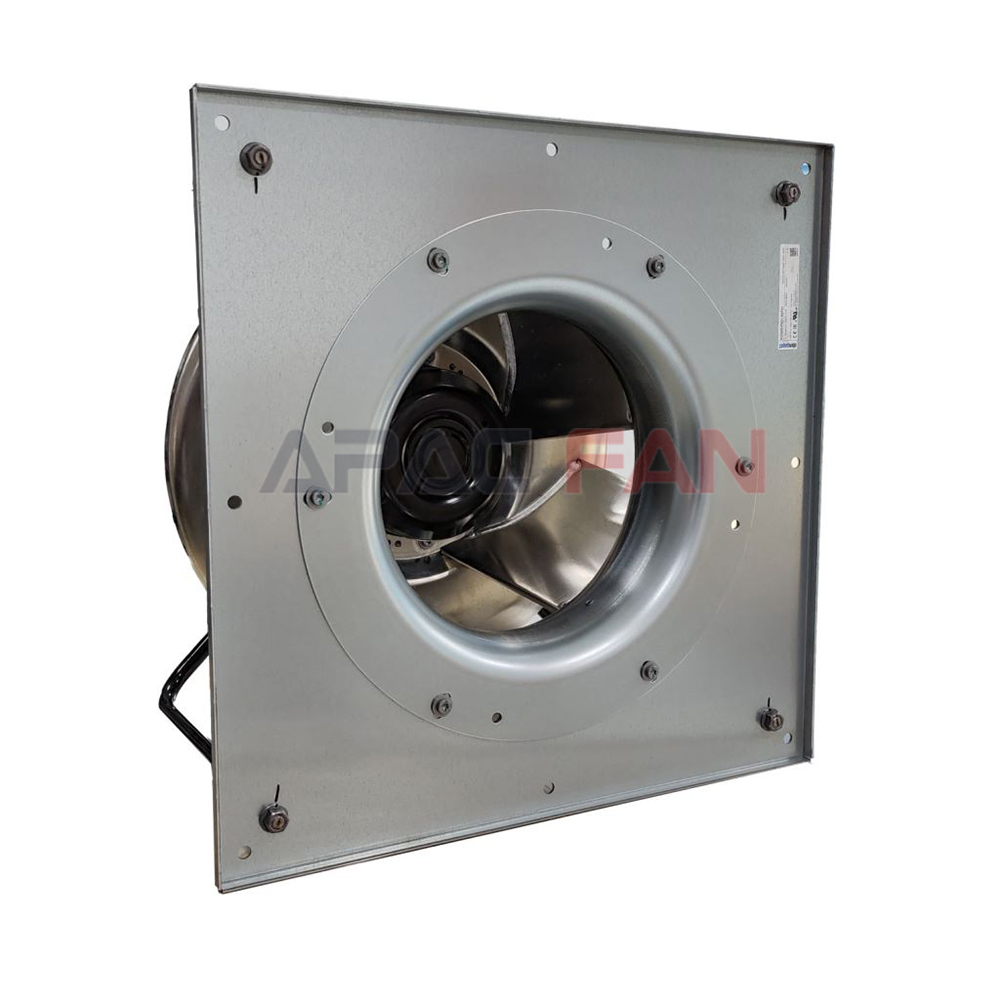

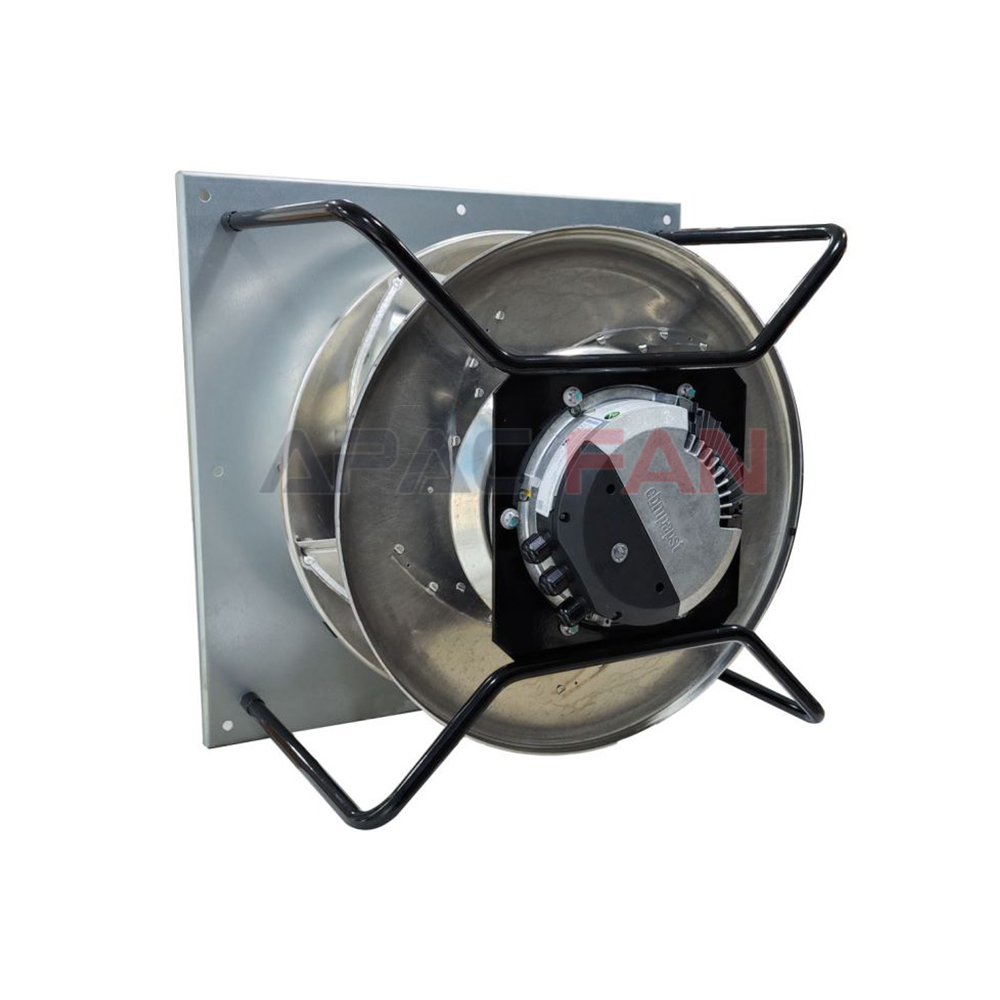

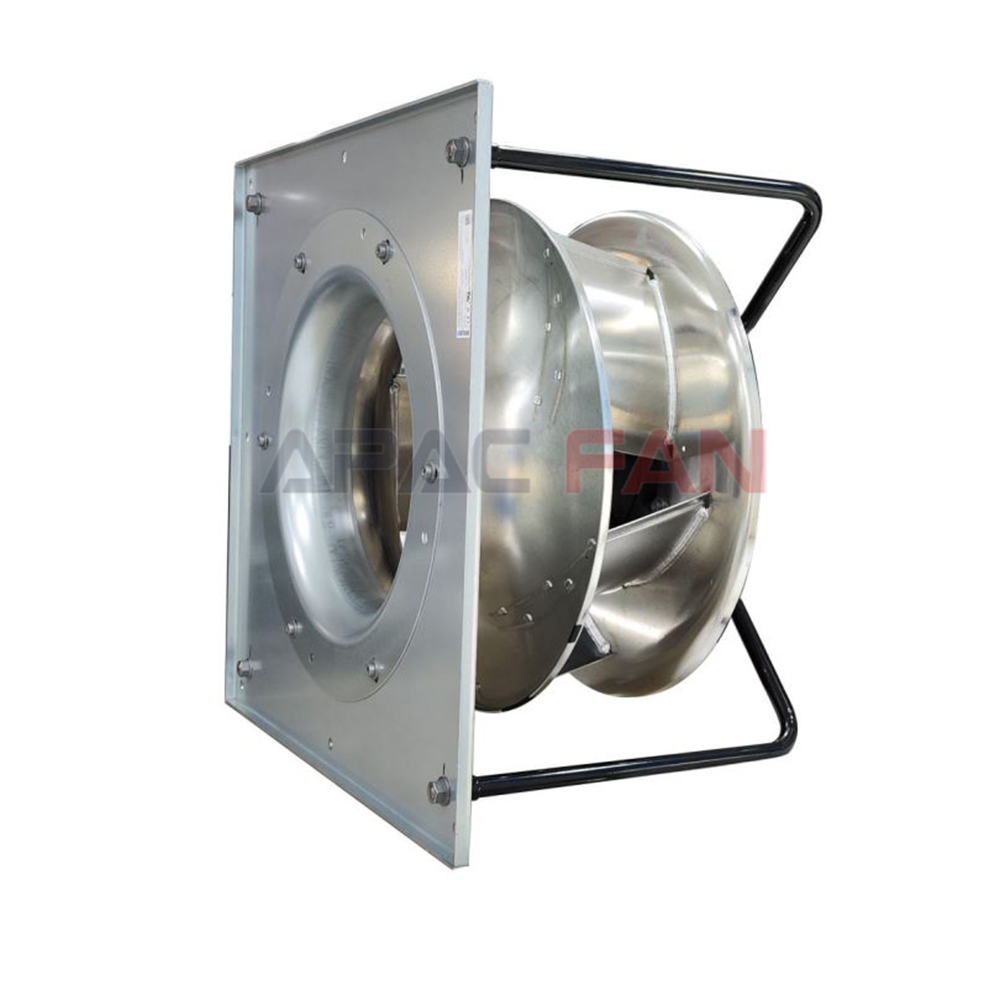

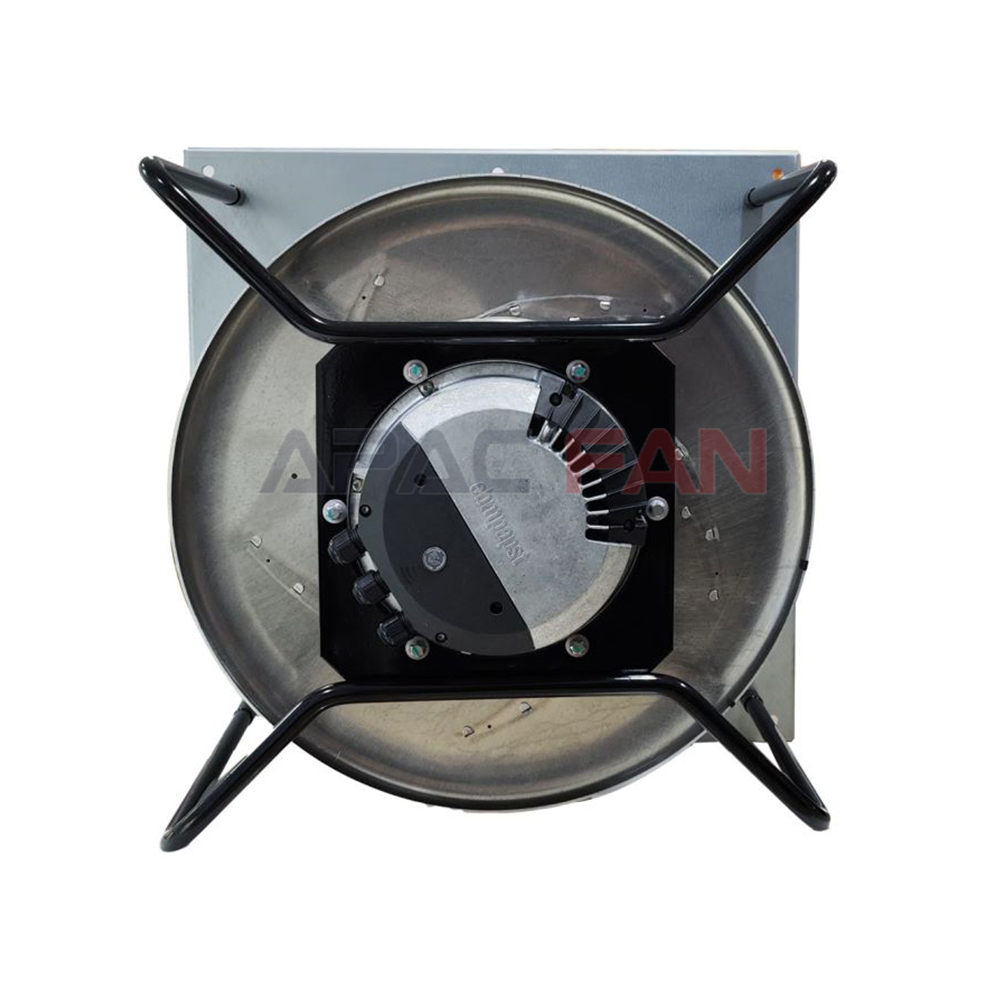

K3G450-PA31-03/F01
Brand：
ebmpapst
Document：
Category：
Centrifugal Fan
Description：
Type: EC Centrifugal Fan
Air output (m³/h):8430
Speed (RPM): 2480
Min. Ambient Temperature: -40 °C
Material: Die-cast Aluminum Housing and Sheet Aluminum Impeller
Air output (m³/h):8430
Speed (RPM): 2480
Min. Ambient Temperature: -40 °C
Material: Die-cast Aluminum Housing and Sheet Aluminum Impeller
Nominal data
Brand：
ebmpapst
Part No.：
K3G450-PA31-03/F01
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
400
Size(mm)：
450
Max.Air Flow(m³/h)：
8430
Max.Pressure(Pa)：
1630
Input Power(W)：
4450
Speed(rpm)：
2480
Noise(db)：
98
Description

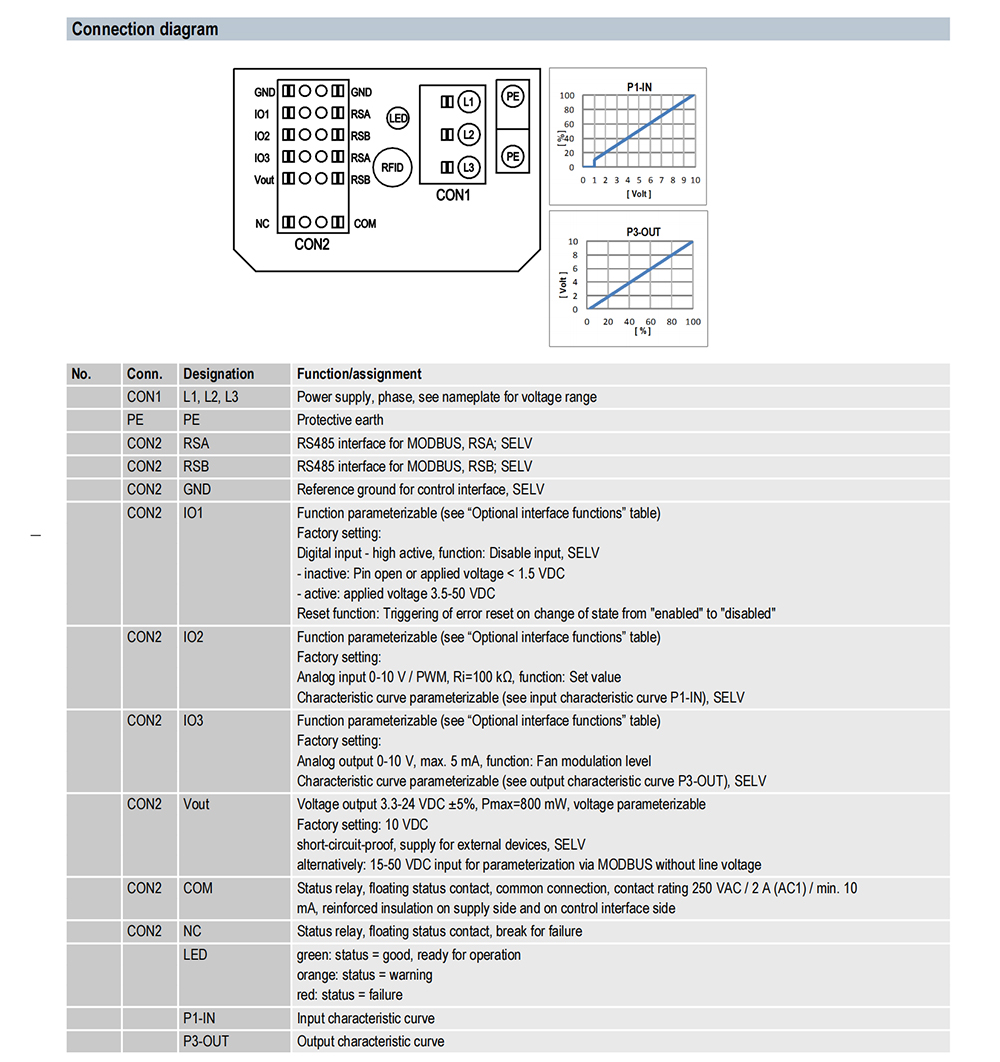

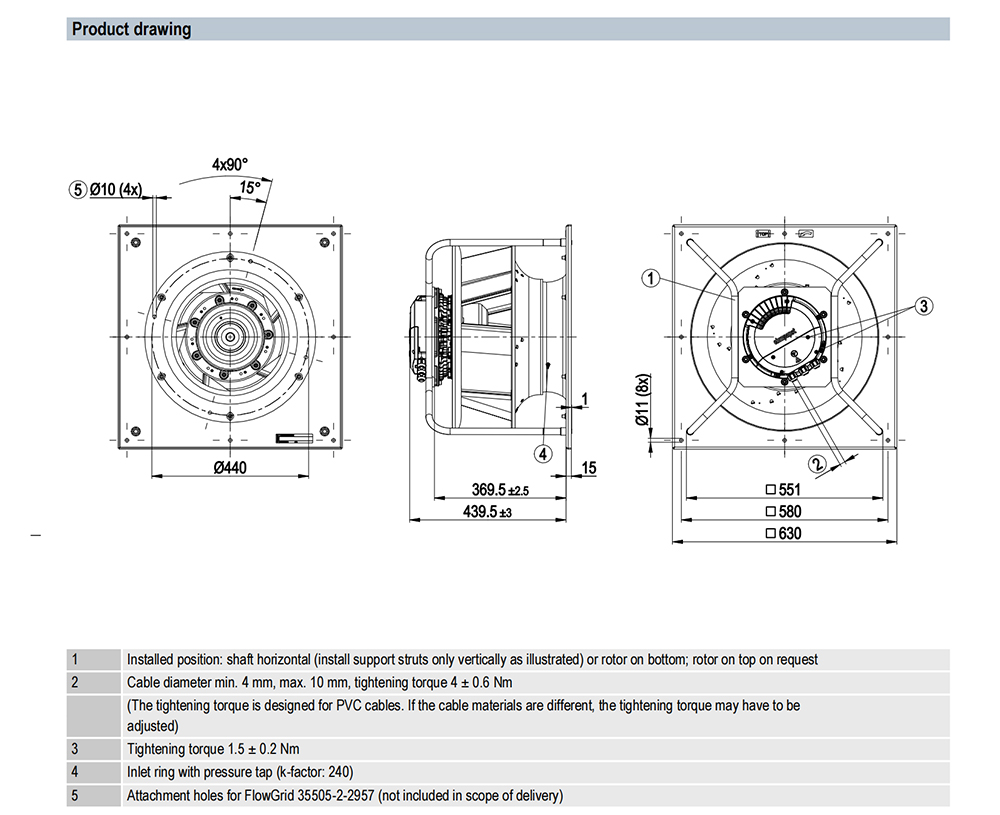

K3G450-PA31-03 ebmpapst Specification drawing：
