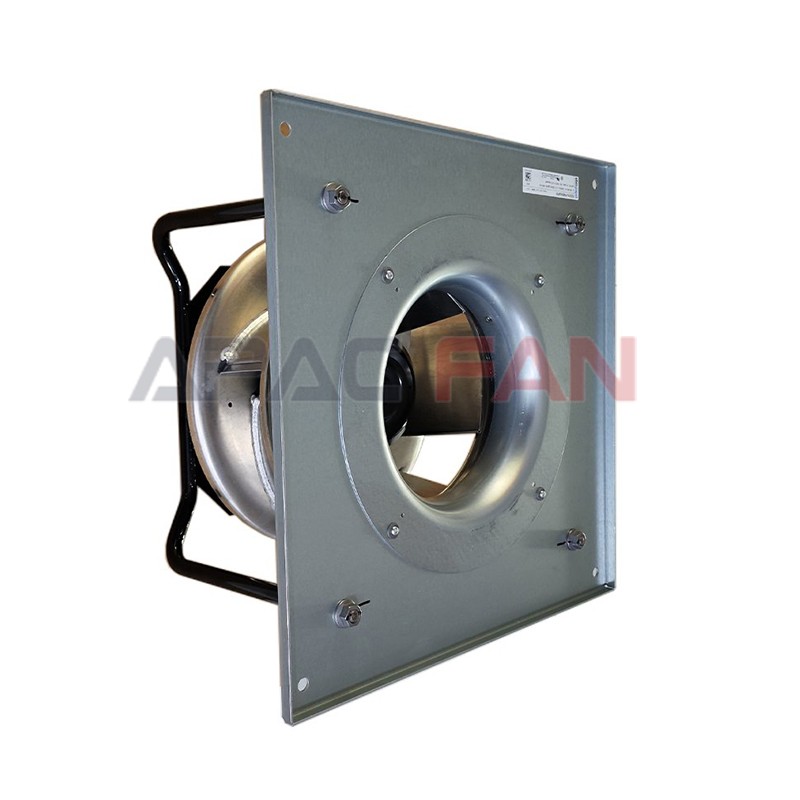

K3G310-PV69-03/F01 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

K3G310PV6903F01.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：K3G310-PV69-03/F01
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：310
Max.Air Flow(m³/h)：4020
Max.Pressure(Pa)：1583
Input Power(W)：3050
Speed(RPM)：4000
Noise(dB)：100

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

K3G310-PV69-03/F01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

310

Max.Air Flow(m³/h)：

4020

Max.Pressure(Pa)：

1583

Input Power(W)：

3050

Speed(rpm)：

4000

Noise(db)：

100

Description

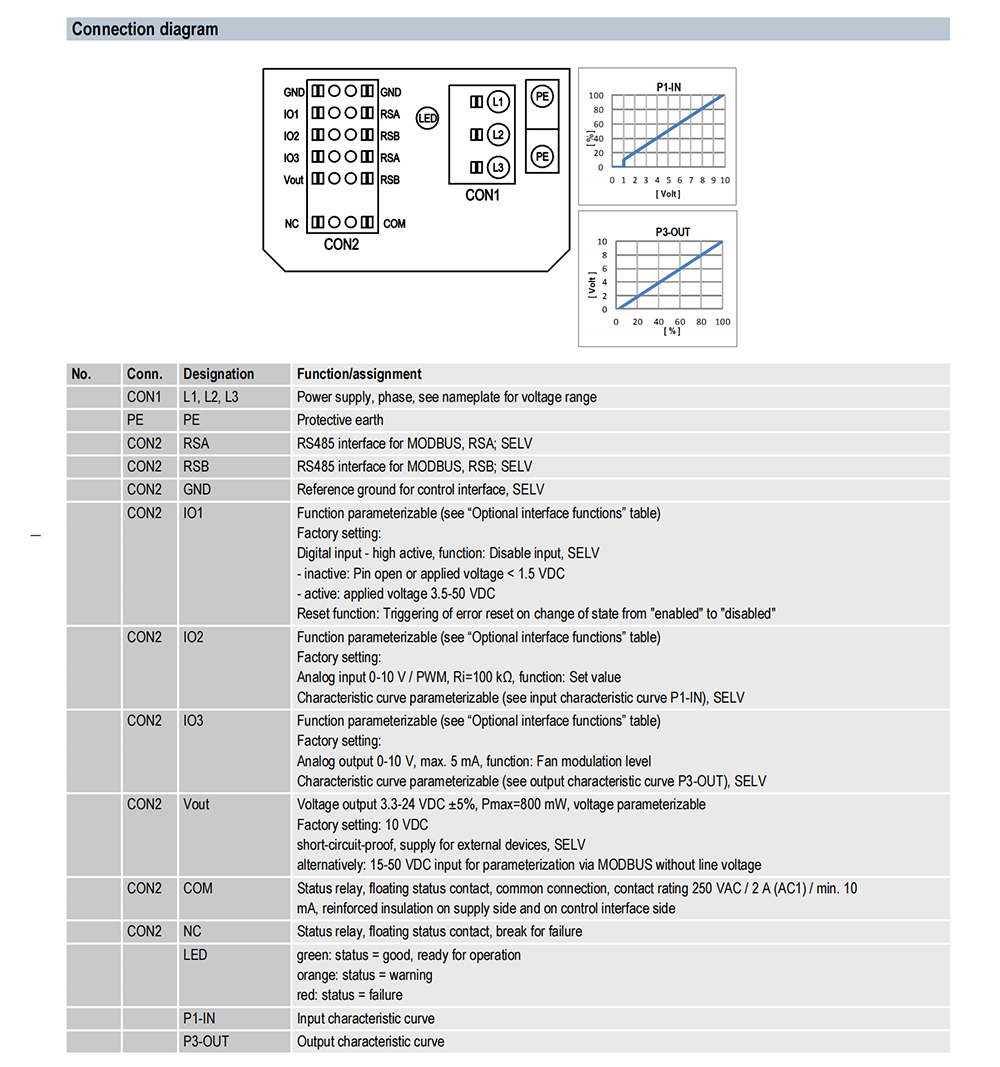

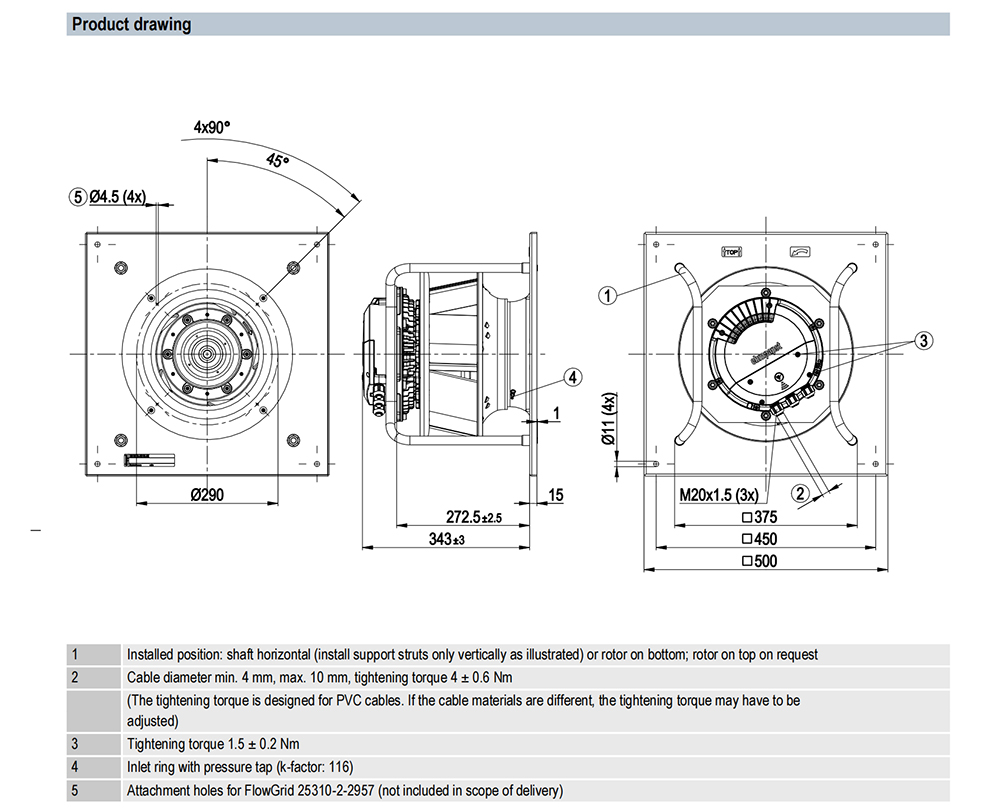

K3G310-PV69-03/F01 Ebm-papst Specification drawing：
