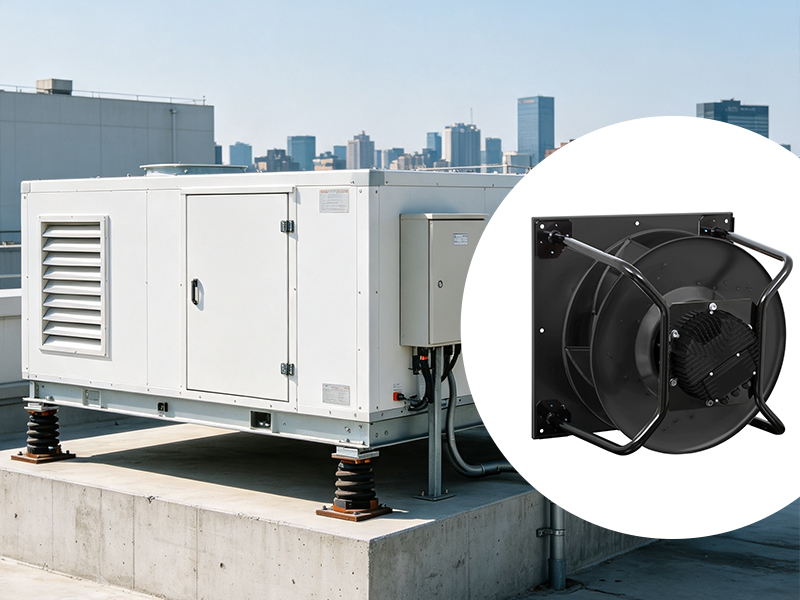

繁體中文How AHU Fans Affect HVAC Energy Efficiency
08/18/2026Fans as a Continuing Energy Load
An AHU fan may operate for many hours, so modest inefficiencies can accumulate over the life of a building. The fan must overcome resistance in the unit and duct system while delivering the airflow required for ventilation, heating, cooling, humidity control, and pressurization. Energy use depends on more than motor efficiency. Airflow demand, total pressure, impeller selection, control method, duct design, component cleanliness, and operating schedule all interact. The most effective efficiency work therefore begins with the air system. Replacing a motor without reducing unnecessary airflow or pressure may improve one component while leaving the main source of waste untouched.
Airflow Has a Powerful Influence
When a fan’s speed is reduced in a system that behaves approximately like a fixed resistance curve, airflow changes roughly with speed, pressure with the square of speed, and power with the cube of speed. These fan laws are useful for understanding why variable-air-volume operation can save energy, but they are not a substitute for measured system behavior. Minimum ventilation, control limits, coil performance, pressure-independent terminals, and changing damper positions can alter the relationship. Still, the principle is clear: moving more air than the building needs is expensive. Accurate scheduling, demand-based ventilation, and properly functioning terminal controls can reduce the airflow burden before attention turns to hardware.
Static Pressure and System Resistance
Every filter, coil, damper, silencer, heat-recovery device, transition, and length of duct adds resistance. Some pressure loss is necessary for treatment and distribution, but poor design creates avoidable loss through undersized ducts, abrupt fittings, blocked intakes, excessive face velocity, or components selected without system coordination. Designers sometimes add generous pressure allowances and operators later hold a high static-pressure setpoint as insurance. The fan then consumes extra power while terminal dampers throttle away the surplus. A pressure survey can identify where resistance occurs. Redesigning a restrictive fitting or lowering a setpoint may deliver more value than installing a nominally higher-efficiency fan.
Fan Selection and Operating Point
Each fan has a region where it converts shaft power to air power effectively and operates stably. Selecting too far from that region can increase energy use and sound. Oversized fans are common because design margins are added at several stages, but the finished system rarely needs all of those margins simultaneously. A fan that spends its life at a very low command may not be the best match, particularly if control or motor cooling limits apply. Selection should examine clean and dirty filters, occupied and unoccupied modes, economizer positions, and likely future changes. The aim is a practical efficiency envelope, not an impressive value at one catalog point.
Variable-Speed Control
Variable-speed drives and EC motors allow the fan to follow demand instead of relying on inlet vanes or discharge throttling. The control objective is crucial. A variable fan commanded to maintain an unnecessarily high pressure still wastes energy efficiently. Static-pressure sensors should be located where they represent the distribution system, and setpoints can often be reset according to terminal damper positions or zone requests. Supply airflow can also track summed zone demand, with safeguards for ventilation and equipment limits. Loops need stable tuning and sensible minimum and maximum speeds. Rapid oscillation shortens component life, creates noise, and prevents the system from settling at an efficient point.
AHU Components and Maintenance
Filters protect indoor air quality and coils, but loading increases pressure drop. The answer is not to remove filtration or replace filters prematurely without evidence. Instead, use appropriate filter area, monitor differential pressure, seal bypass gaps, and establish a change criterion consistent with the filter and system requirements. Dirty coils, clogged screens, damaged dampers, and fouled fan wheels also add resistance or reduce fan performance. A clean wheel maintains balance and aerodynamic shape. Maintenance data can reveal a gradual rise in fan command or power for the same airflow, providing an early warning that the system is becoming restricted.
Heating and Cooling Interactions
Fan airflow affects more than fan electricity. Excess airflow can increase reheat, reduce dehumidification effectiveness, and change coil leaving conditions. Too little airflow can limit capacity, risk coil freezing in some circumstances, or fail to distribute ventilation. Fan heat also enters the airstream, with its location relative to the coil influencing the thermal effect seen by the conditioned space. Strategies such as supply-air-temperature reset must be coordinated with fan and terminal operation; a temperature change can cause zones to request more airflow, offsetting expected savings. Whole-system optimization considers fan energy together with chiller, boiler, compressor, humidification, and reheat consequences.
Economizers, Outdoor Air, and Building Pressure
Outdoor-air and return-air dampers change the resistance seen by the fan. Economizer operation may therefore shift the operating point even when supply airflow is unchanged. Poorly coordinated dampers can create pressure imbalances, unstable mixing, or excessive intake resistance. Supply, return, and exhaust fans should work together to maintain appropriate building pressure without wasting energy. In tight buildings, a small pressure error can drive significant airflow through doors and leakage paths. Measuring outdoor airflow and tracking fan relationships is more reliable than assuming damper position equals airflow. Efficient ventilation requires the correct quantity of outdoor air, not the largest possible quantity.
Measurement and Performance Monitoring
Useful metrics include fan speed, airflow, static pressure, motor input power, filter differential pressure, damper positions, and zone requests. Trends are more informative when normalized for operating mode and airflow. A rising power-to-airflow relationship may indicate fouling or added resistance, while a consistently high pressure with mostly closed terminal dampers suggests setpoint waste. Sensors must be commissioned and periodically checked; an inaccurate pressure transducer can drive the entire system inefficiently. Operators should compare measured performance with the intended sequence and investigate overrides. Dashboards are valuable only when they lead to action and distinguish normal load changes from persistent faults.
A Systematic Efficiency Approach
Begin by confirming occupancy schedules and actual ventilation and process needs. Measure airflow and pressure, review damper positions, and locate the largest pressure losses. Correct failed sensors, stuck dampers, leakage, and maintenance problems before changing equipment. Then optimize setpoints and reset logic, and evaluate fan or motor upgrades using the verified duty profile. Commission every change and trend performance through different seasons. AHU fan efficiency is ultimately an operational discipline: good components establish potential, while sound duct design, realistic setpoints, responsive controls, and sustained maintenance convert that potential into lower energy use without sacrificing comfort or indoor air quality.
