High-Performance FFU UF-225(69)APA23H1C2A Fulltech Fan for Cleanroom Systems

Brand：

Fulltech

Category：

Centrifugal Fan

Description：

Brand：FULLTECH
Part No：UF-225(69)APA23H1C2A
Fan Type：Centrifugal Fan
Rated Voltage(V)：230
Size(mm)：φ225*69
Max.Air Flow(m³/h)：935
Input Power(W)：125
Speed(RPM)：2950
Noise(dB)： 72

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF-225(69)APA23H1C2A

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

Max.Air Flow(m³/h)：

935

Max.Pressure(Pa)：

Input Power(W)：

125

Speed(rpm)：

2950

Noise(db)：

Description

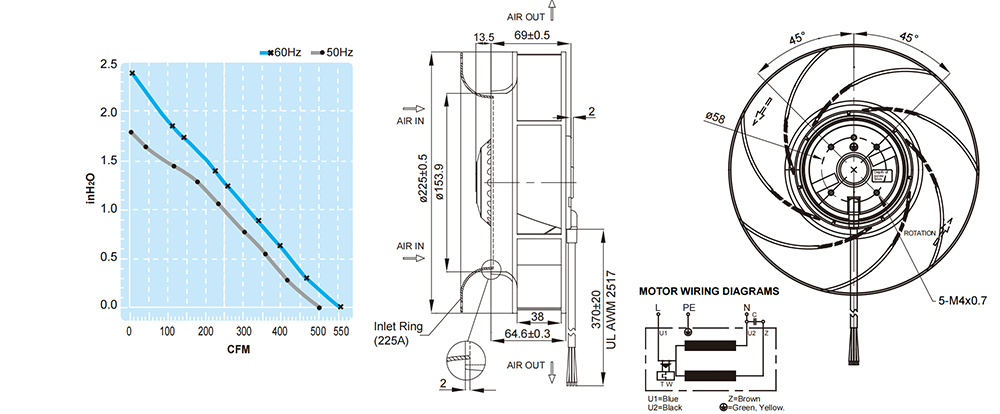

UF-225(69)APA23H1C2A FULLTECH Specification drawing：
