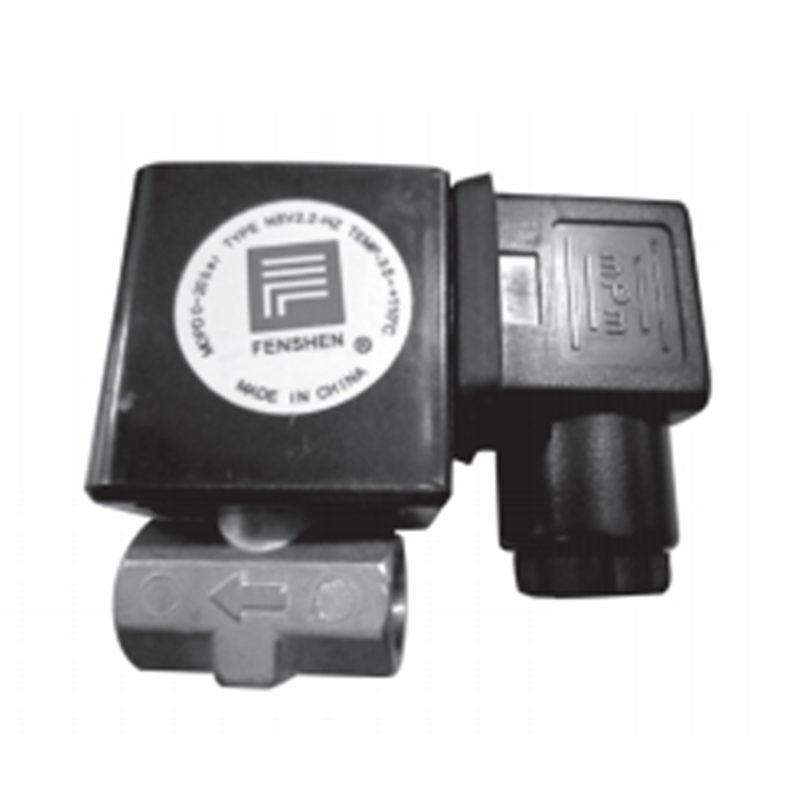

NSV2.2A Direct-Acting Solenoid Valves
Description
■ Introduction
NSV2.2A direct-acting solenoid valves feature compact structure, rational design, easy installation and maintenance, and act rapidly. This series can be widely used in refrigeration, pneumatic and hydraulic systems. Solenoid valves use full-closed magnetic coil and DIN international standard electric plug, so it is characterized by its good insulation, waterproof, moisture proof, anti-vibration and corrosion resistance.
■ Technical Parameters
● Ambient temperature: -20~+55°C
● Medium temperature: -25~+100°C
● Maximum working pressure: 3.0MPa
● Test pressure: 3.5MPa
● Open valve pressure difference: minimum 0 MPa Maximum AC 2.1MPa
● Coil voltage: AC 220V 380V
● Coil power: 16VA
● Coil insulation: F
● Connection: Inch Rc1/4" internal thread
● Kv value: 0.09
● Control method: Normally closed type 2nd two-way
● Applicable medium: Does not attack copper alloy fuids and gases and oils with a viscosity less than 2 degrees Enshi
