9HV5748P5G001

Brand：

San Ace

Category：

Axial Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

San Ace

Part No.：

9HV5748P5G001

Fan Type：

Axial Fan

Rated Voltage(V)：

48

Size(mm)：

172*150*51

Max.Air Flow(m³/h)：

966

Max.Pressure(Pa)：

1600

Input Power(W)：

240

Speed(rpm)：

10500

Noise(db)：

83

Description

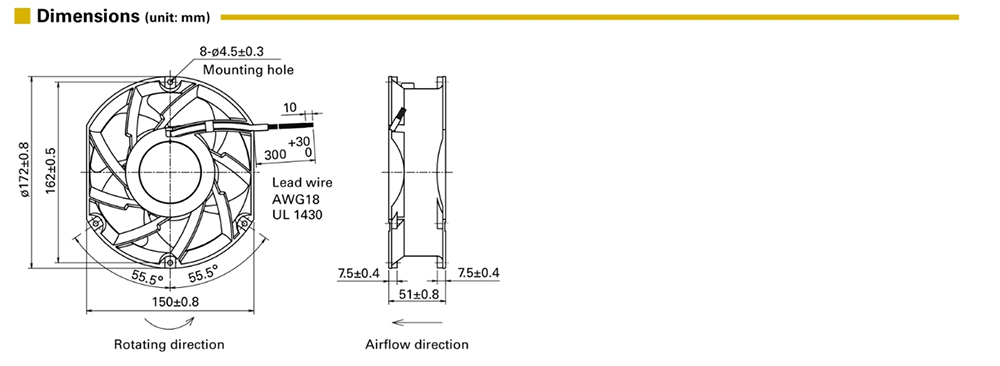

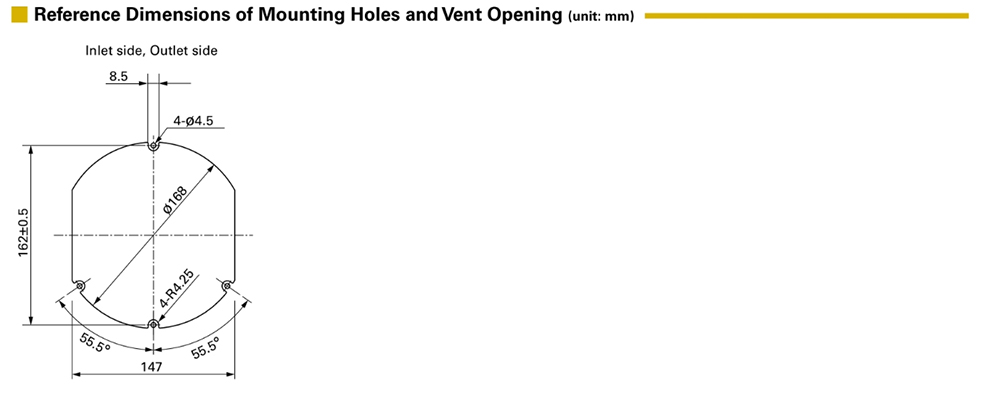

9HV5748P5G001 San Ace Specification drawing：
